Automated diagnosis of the Revit model

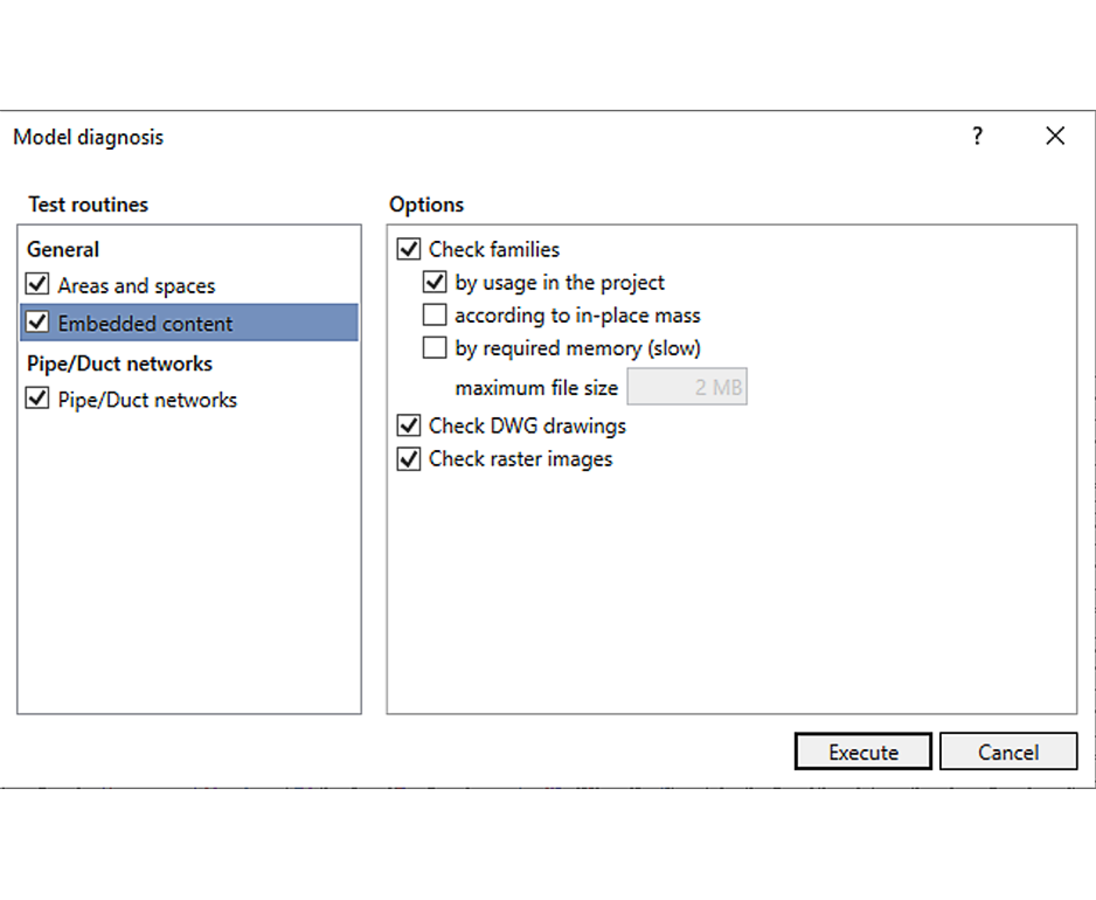

With the new Model diagnosis in the LINEAR tab, you can now start test routines to check a Revit model for potential problems. Check routines are currently available in three areas, which you can use collectively or individually.
Checking the model for problems with unused families, families that are too large, embedded DWGs and unused raster images.
Areas and Spaces:
Review of the model with respect to unplaced, unconstrained, and redundant areas /spaces. Also a plausibility check for the height of rooms can be performed.
Check of direct duct connections or flex ducts without geometry, which often occur due to a too tight curve during duct construction. Air ducts with internal and external insulation can also be found and indicated.
If potential problems are found during the check, you will find the description with reference to the affected elements within the reports in the Reports and Tasks tab.
