Defining a New Pipe Route Cross-Section

Shows step by step how to define a new pipe route cross-section.

  1. Click .

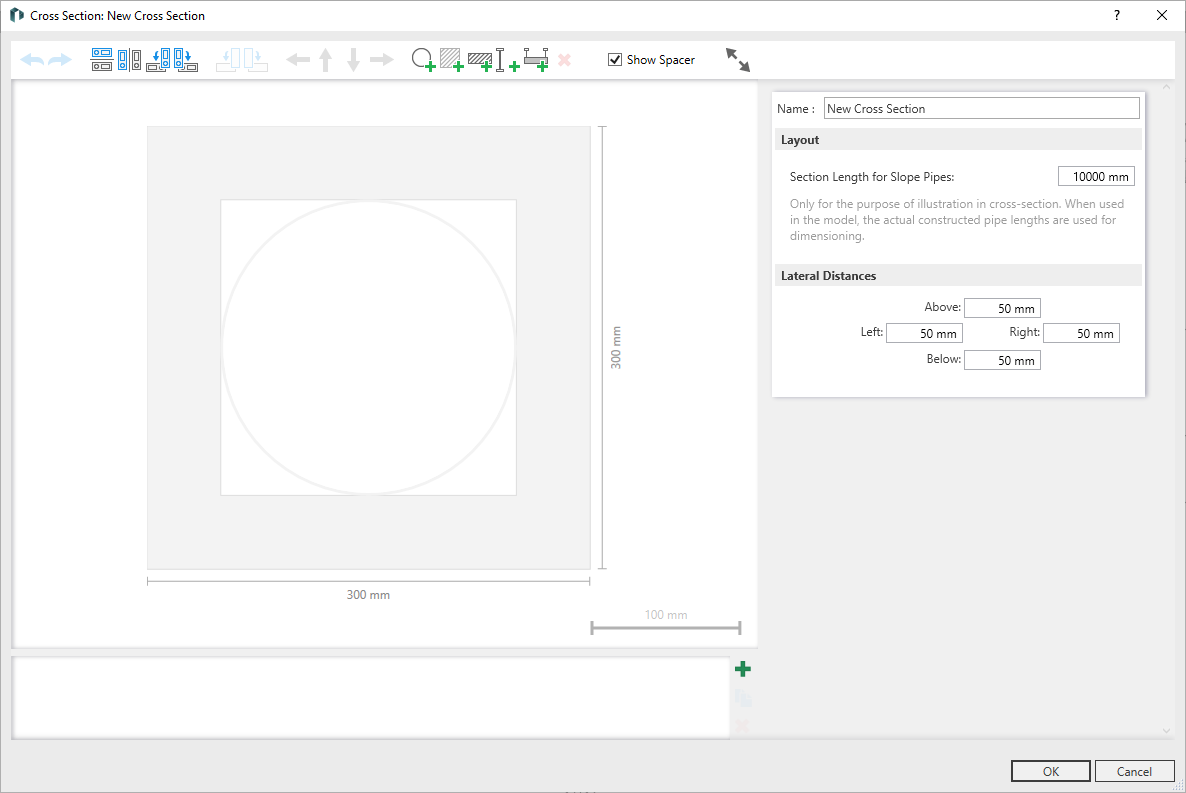

    The Cross-Section Dialogue: New Cross-Section is opened.

  2. Enter the name of the cross-section.

  3. At the bottom of the dialog, click to add the desired number of pipes to the palette.

    If you already assigned pipes to a pipe route in the LINEAR Properties dialog and you call the Cross-Section dialog from the properties, the assigned pipes are displayed here.

  4. Click the individual pipes in the palette and configure them in the Pipe area.

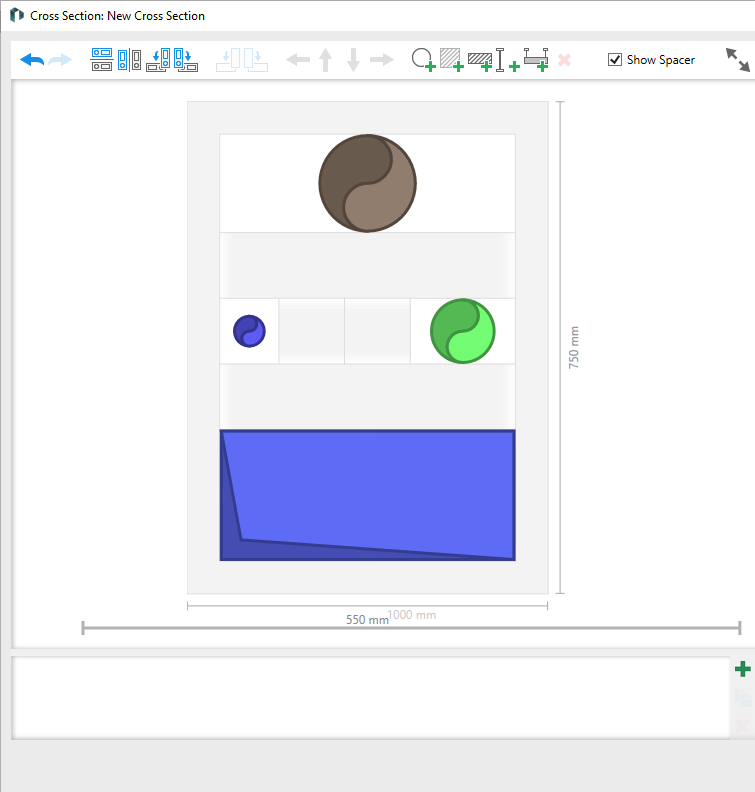

  5. Drag and drop the individual pipes into the cross section and to the desired position.

  6. Add reserved areas to the cross section for cross bonding of pipes by clicking .

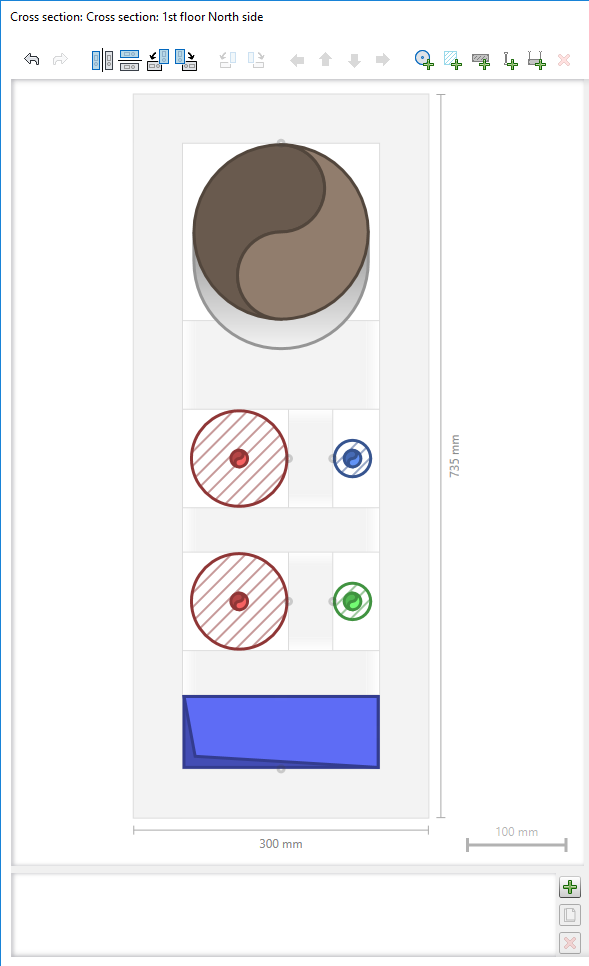

  7. Add placeholders for mounting profiles and threads to the cross-section by clicking and and/or placeholders for complete mounting constructions by clicking and configure the mounting elements as required.

  8. Configure a lateral distance, distance holder and positioning for each pipe.

  9. Click OK.

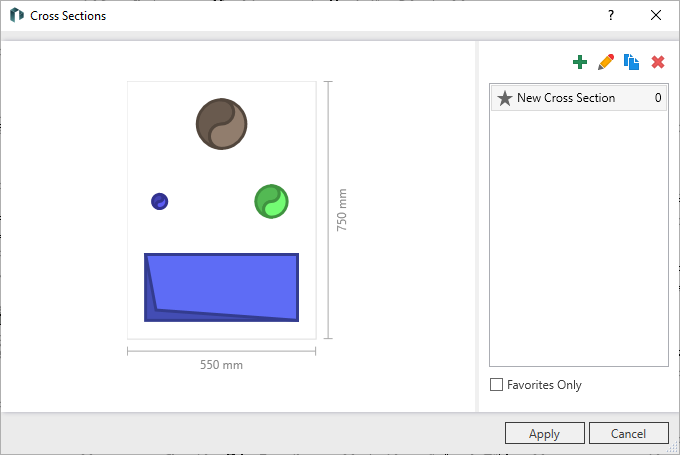

    The new pipe route cross-section is defined with all pipes, pipe dimensions and a cross-section layout and is added to the list of cross-sections. The new cross section is automatically saved as a favorite.

  10. Click Apply.

The new-cross section has been created and can either be used directly when creating new pipe routes or can be assigned to existing pipe routes.
