Consider Space Requirements for Mountings and Ensure Mounting Feasibility

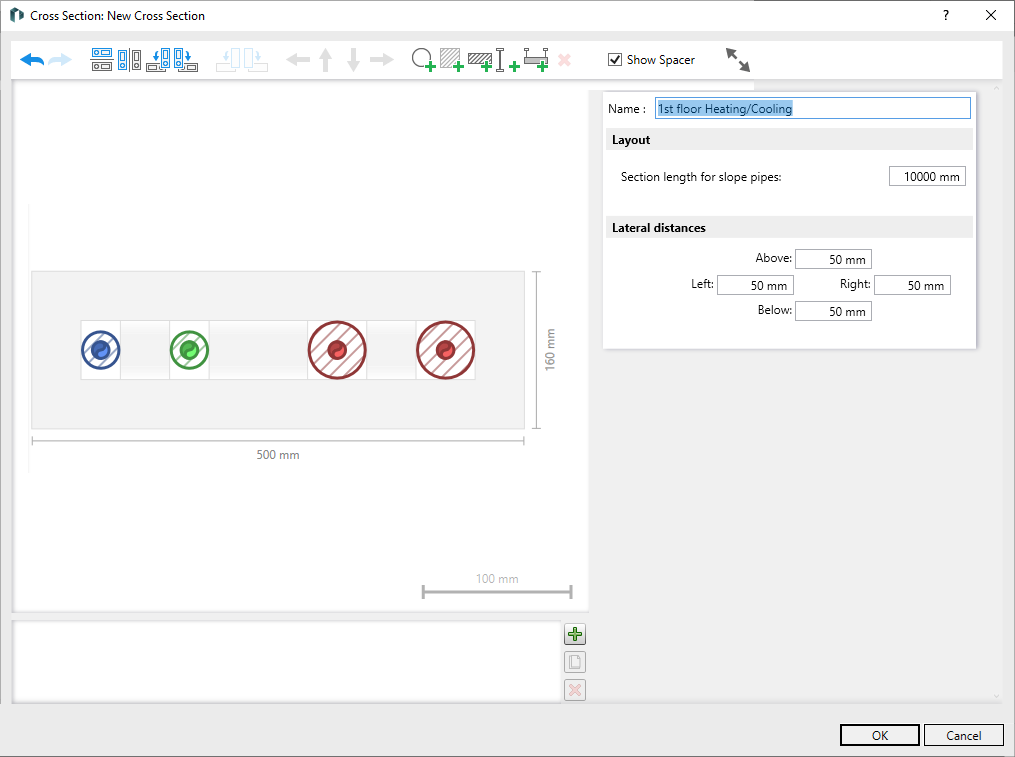

Shows step-by-step how to consider the space requirements of mounting elements when designing pipe route cross-sections and at the same time ensure mounting feasibility.

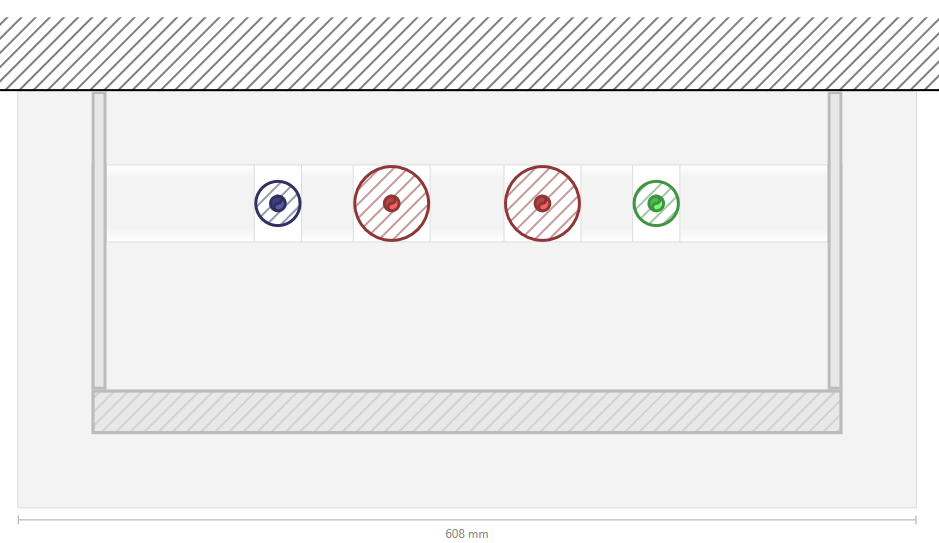

Click on Insert Bracket Construction .

A bracket construction, consisting of a bracket profile and two bracket threads, comprises the complete layout of the cross-section.

If you want to add bracket constructions to individual pipes, select the respective pipe and start the function Insert Bracket Construction.

As an alternative to the Insert Bracket Construction function, you can design a mounting solution tailored to your individual situation by inserting and then positioning individual support threads and profiles.

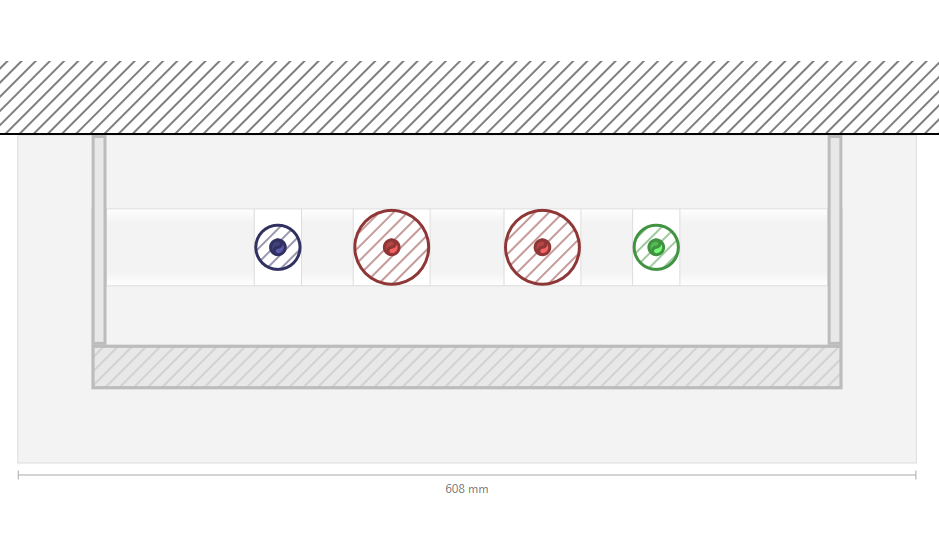

If necessary, adjust the dimensions of the spacers between the pipes/ducts and the bracket structure.
Select a pipe/duct and specify the Mounting Direction under Bracket.

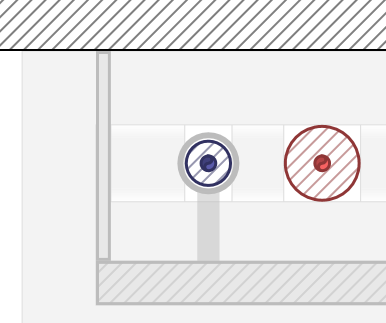

The pipe/duct has a threaded rod in the direction of mounting.
Repeat step 3 for the rest of the pipes.

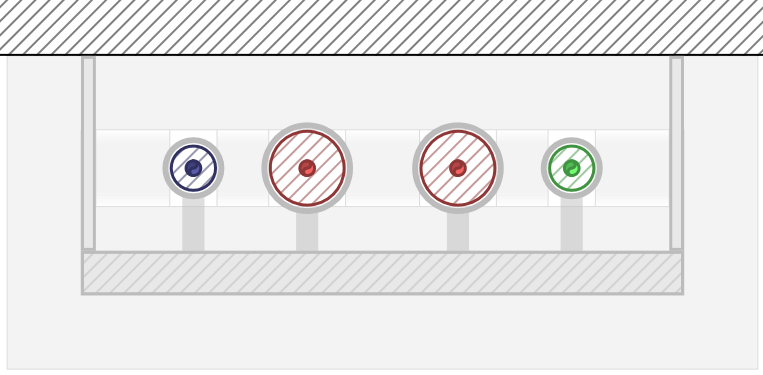

The cross section considers the space required for the mounting elements and ensures that the layout of the cross section is feasible in terms of mounting technology.
