LINEAR Revit V26

Configuring the quantity takeoff

Shows step-by-step how to configure the quantity takeoff.

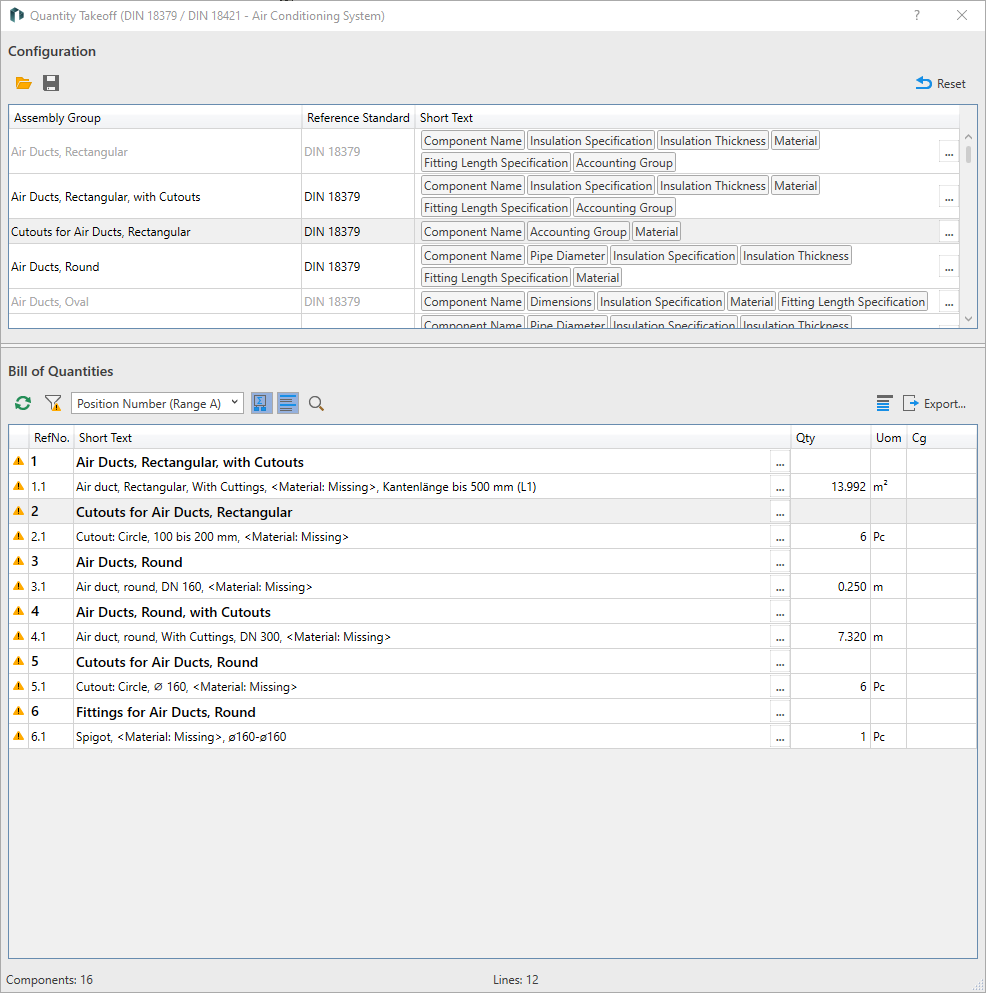

  1. If you want to adjust the order of the attributes in the short text, activate editing by double-clicking in the corresponding cell of the Short text column.

  2. Drag and drop the attributes into the desired order.

    The new order of the attributes is adjusted in real time in the Quantity takeoff section.

  3. To edit the attributes in the Short text column, click .

    The Configure short text dialog for editing the attributes opens.

  4. Adjust the existing parameters as desired.

  5. If necessary, add more parameters by clicking and close the Configure short text dialog by clicking OK.

  6. Save your user-defined configuration in the Quantity takeoff acc. To: [...] dialog by clicking on in a directory of your choice.

    The configuration with the currently set short text attributes is saved in a text file (*.qcf).

The quantity takeoff is configured as required and saved for future use.
