LINEAR Revit V26

Exporting Data for DÄMMWERK

Shows step-by-step how to export your project data in order to import the data into the software DÄMMWERK and create an energy certificate.

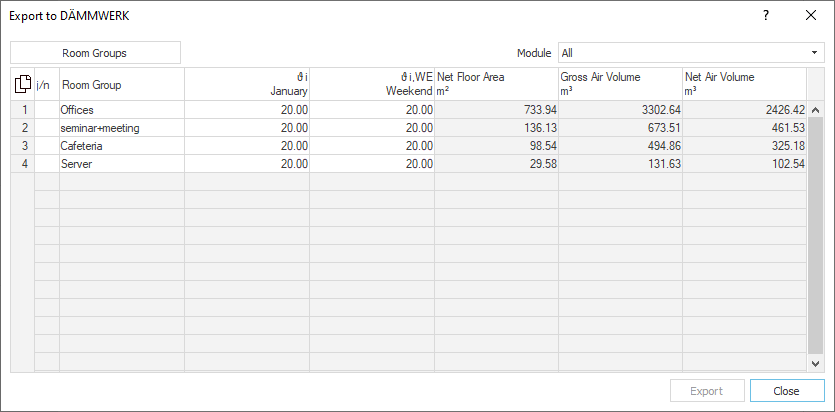

  1. Click in the j/n column to select the Room Groups for export.

    Selected room groups are marked with a check mark.

  2. For the Room Groups to be exported, enter the average indoor temperatures for the month of January (for restricted heating operation, if applicable) and the average indoor temperatures for weekend operation in the ϑ i January and ϑ i, WE Weekend columns.

  3. Click Export.

    The Save as dialog opens.

  4. Enter a file name and change the file type if necessary.

  5. Start the export by clicking Save.

You have created two files with the data needed to create Energy Performance Certificates and can now import them into DÄMMWERK.
