Creating Room Groups

Shows step-by-step how to create room groups required for export to DÄMMWERK and assign rooms to them.

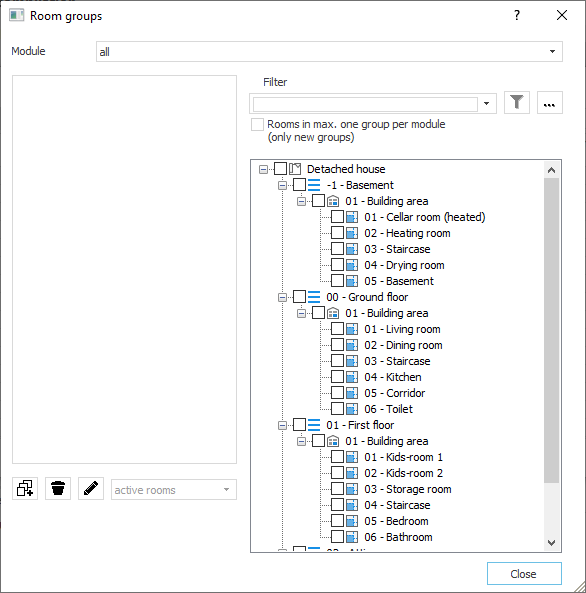

  1. If necessary, select the module to which you would like to assign the room groups from the Module drop-down list.

  2. If necessary, activate Rooms in max. one group per module (new groups only).

  3. Click Add Room group .

  4. In the following window, enter the name of the new room group and confirm your entry.

    The room group created is now available in the List of Room Groups on the left-hand side of the dialog and rooms can be assigned to the room group.

  5. Select the rooms you would like to assign to the room group from the Selection of rooms to be considered list in the right area of the dialog.

  6. To create additional room groups, if necessary, repeat steps 2 to 5.

  7. Close the dialog.

You have created one or more room groups and carried out the assignment of rooms.
