Select a medium, that is already stored as a file or enter the thermophysical properties of you own medium.
You are here:
Name
If necessary, enter a name for the medium. The name is independent from the file name of the external medium file.

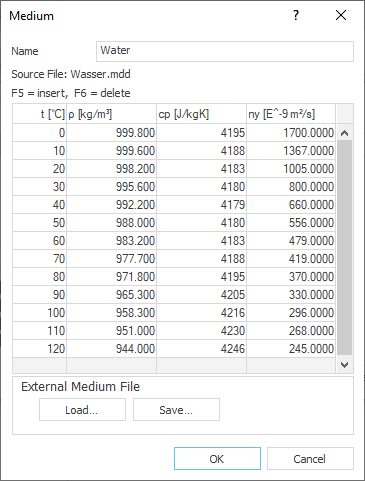

Table of thermophysical properties
|
Column |
Description |
|---|---|
|
t |
Enter the temperature for which the following characteristic values of the medium apply. |
|
rho |
Density of the substance at the given temperature. |
|
cp |
Specific heat capacity of the substance. |
|
ny |
Viscosity of the substance. |
External medium file
If you have entered own thermophysical properties, the table can be saved and loaded as an external file using the Load and Save functions. If a file is loaded, the medium data are also saved in the project to make sure that the values are available for all participants without exchanging the medium file.
