Shows step-by-step how to define a pipe material for a pipe run that differs from the project setting.

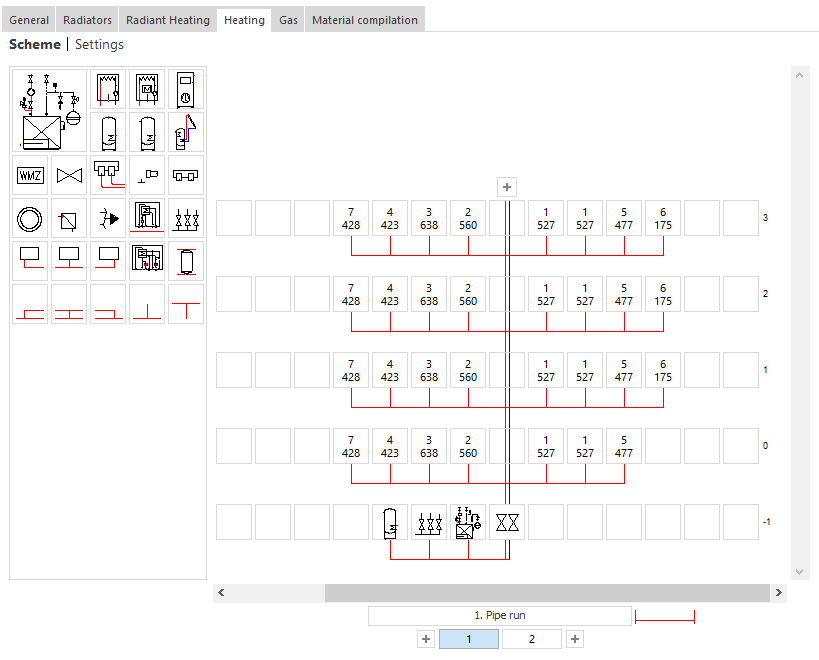

Click a pipe run button of a storey (, ).
The following context menu opens.
Select the menu item Pipe run material....

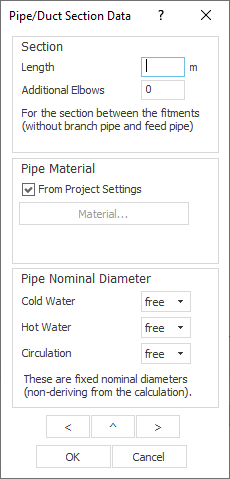

The Pipe run data dialog opens.

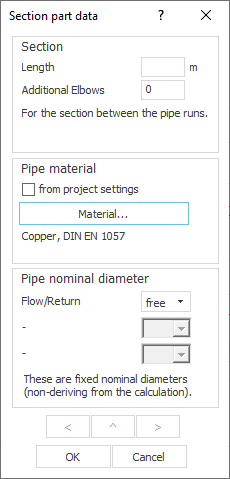

In the Pipe material section, deactivate the checkbox from Project settings and click the now activated Material... button.

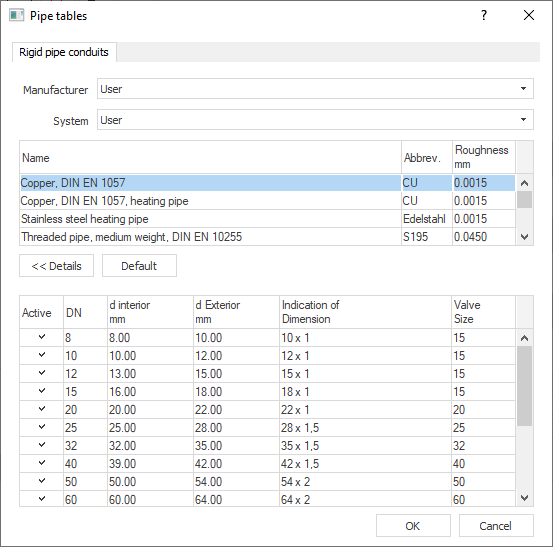

The Pipe tables dialog opens.
Select the desired material and confirm the selection by clicking OK.
You have assigned a pipe material to the pipe run that differs from the project setting.
