Creating a Pipe Offset

Shows step-by-step how to create pipe offsets in a scheme.

  1. If necessary, open the section Pipe offset.

  2. Enter the Radius for the offset.

  3. Set the Orientation of the offset.

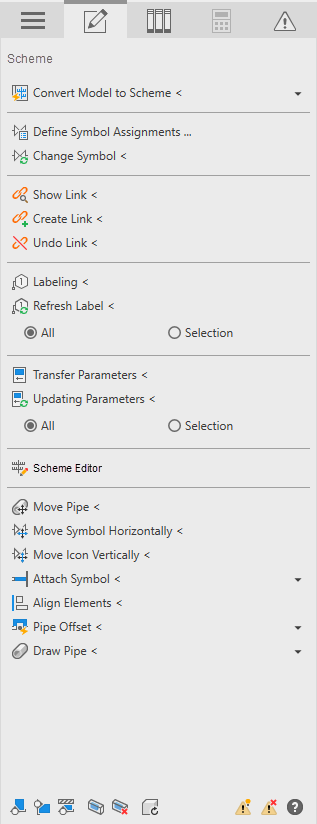

  4. Click Pipe offset < and follow the instructions of the program.

The desired pipe offsets are created.
