Details about the Symbols for Flexible Consumer Connections

Information about the symbols for flexible consumer connections in the schema generator of the trade Potable Water.

You are here:

Module Overview ➤ Scheme Potable Water

You can connect the consumers to the pipe run in different ways. Without an additional connection symbol, the consumers are connected to the pipe run with a rigid pipe and T-pieces. Use one of the following symbols for a flexible connection.

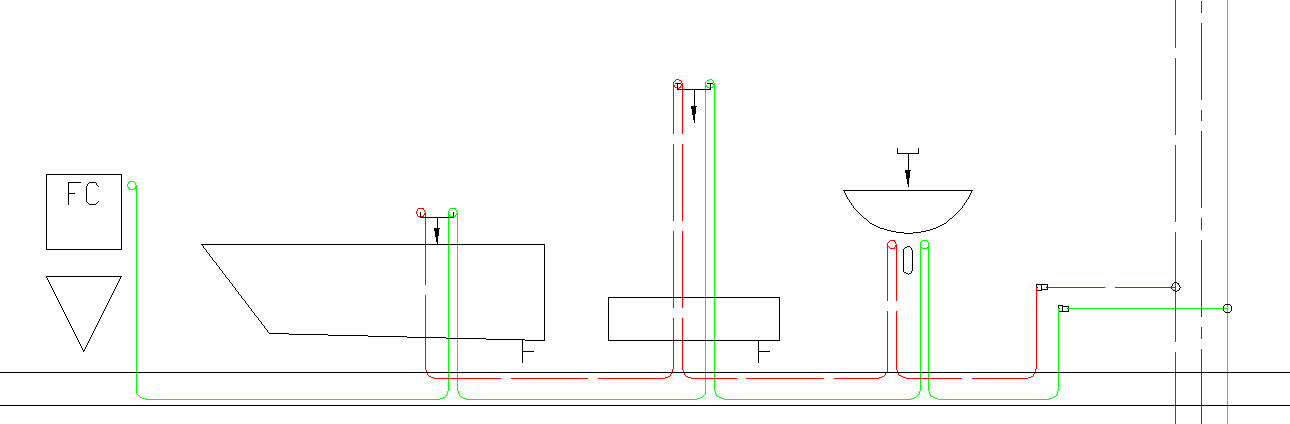

Manifold - Single connection

Rendering of the Connection in the Pipe Run

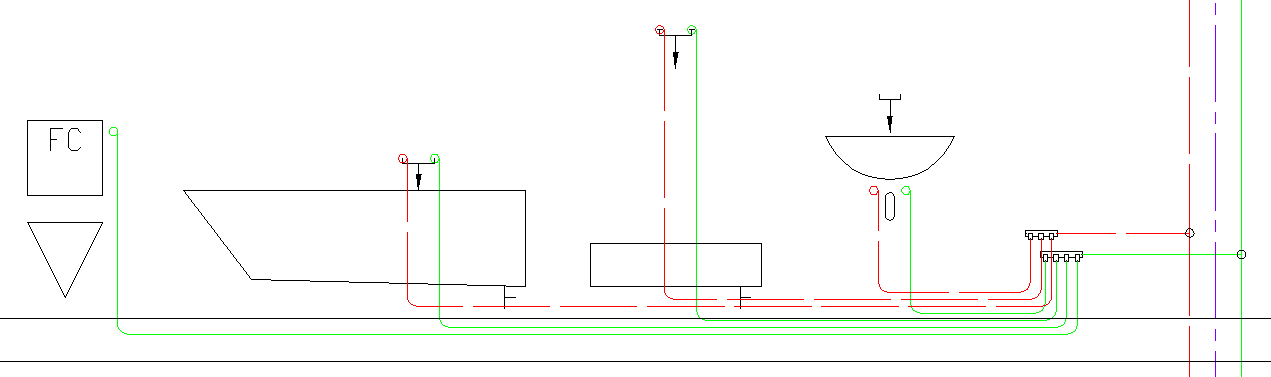

Manifold - Cycle Connection

Rendering of the Connection in the Pipe Run

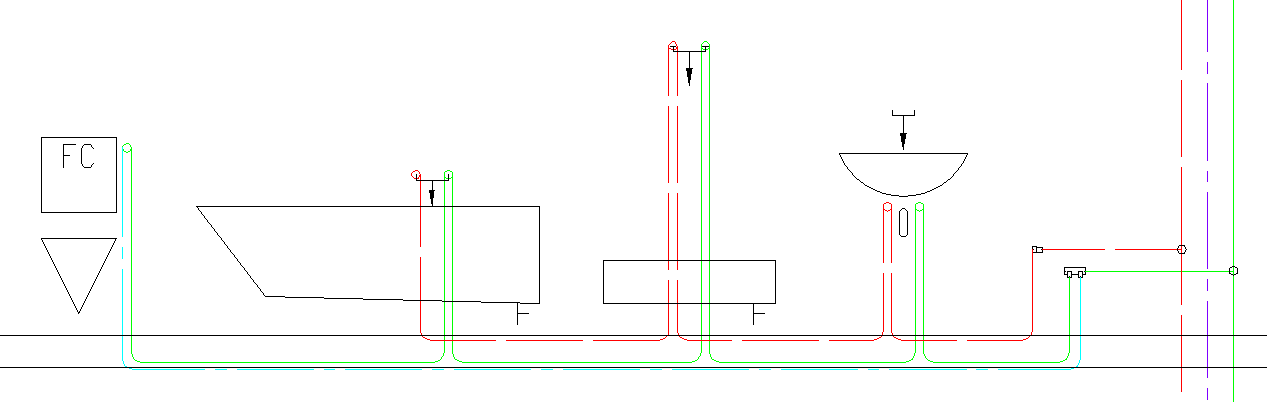

Transition - Series Connection

Rendering of the Connection in the Pipe Run

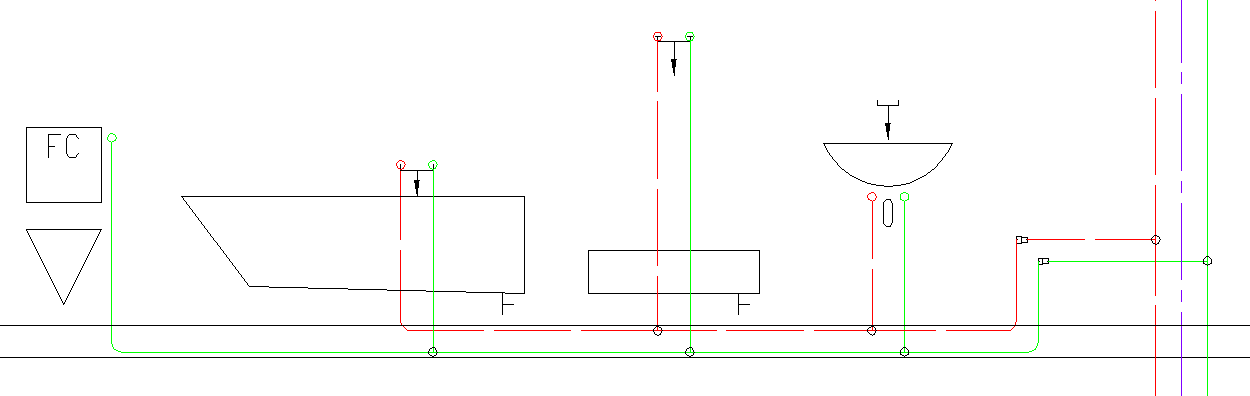

Transition T-Piece Installation
