LINEAR Revit V26

Connecting Components (Ventilation)

Shows step-by-step how to connect components to air ducts.

Open the Connect components section.
Activate the check boxes of the desired connection options.
Click Connect components <.
Select the components and ducts to be connected and confirm with Enter.

You can connect several components at the same time.

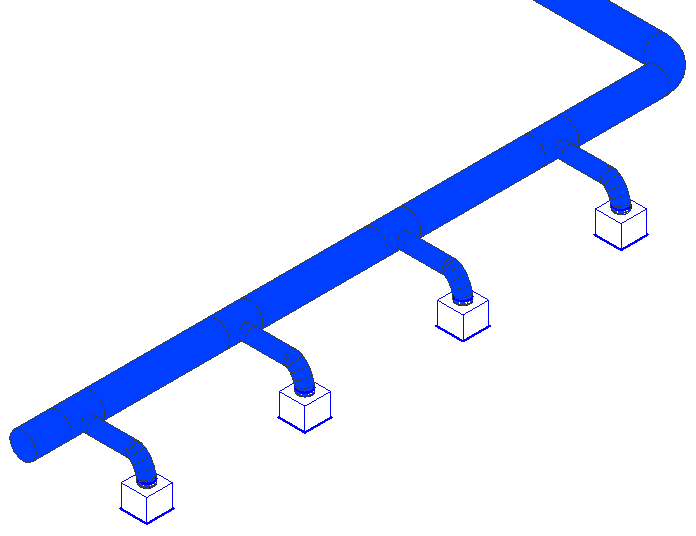

The components are connected to the air ducts.
