LINEAR Revit V26

Connecting Components (Fire Protection)

Shows step-by-step how to connect components to sprinkler pipes.

Open the Connect components section.

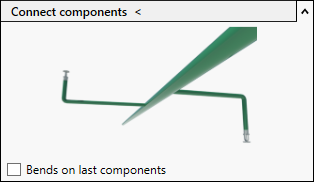

Activate the check boxes of the desired connection options.
Click Connect components <.
Select the components and pipes to be connected and confirm with Enter.

You can connect several components at the same time.

The components are connected to the sprinkler pipes.
