Connecting Components (Ventilation)

Shows step by step how to connect components to air ducts.

Navigate to:

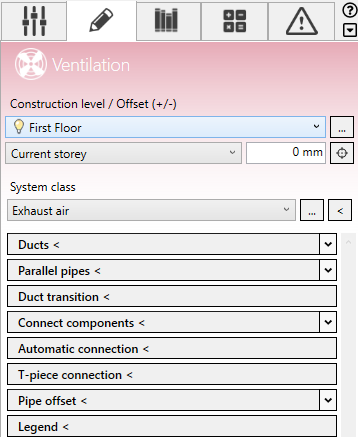

Project tab ➤ Ventilation discipline ➤ Construction tab

Procedure

Open the Connect components section.
Activate the check boxes of the desired connection options.
Click Connect components <.
Select the components and ducts to be connected and confirm with Enter.

Tip:
You can connect several components at the same time.

Results

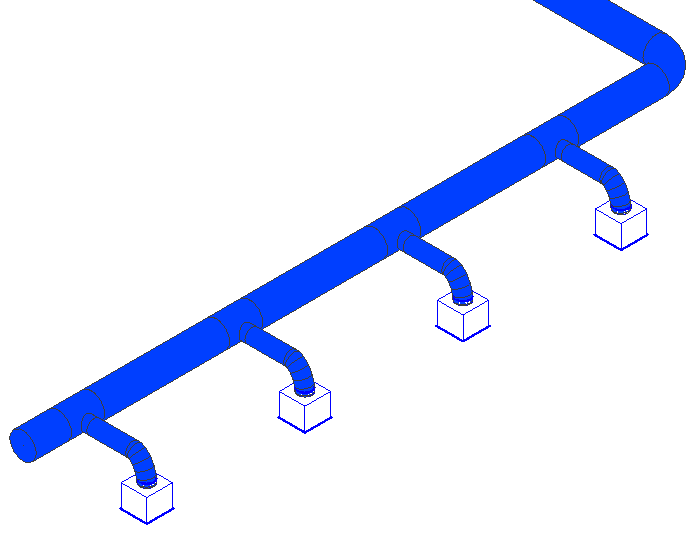

The components are connected to the air ducts.
