Details on "Approximate" (Project Level)

In this area, all rooms to which the approximate determination of the required air volumes is assigned are listed with their settings for overview and editing purposes. You can edit the room settings a room-by-room, and across rooms by using the zb column.

You are here

Module Overview ➤ Ventilation ➤ Project, Storey, Building Part, Apartment, Area Level (Building Structure) ➤ Air Volumes ➤ Calculation Method ... ➤ Approximate Air Volumes (Selection Of Calculation Method) ➤ Project Level ➤ Approximation

Room Settings

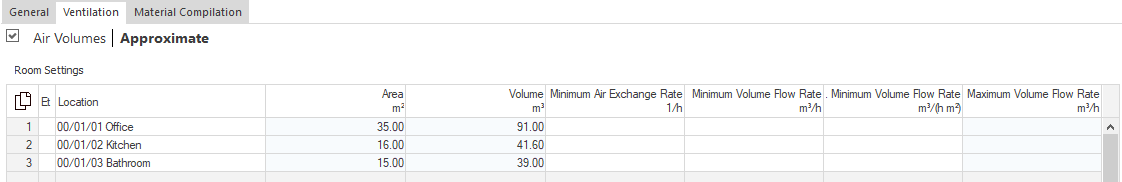

This table lists all the rooms for which the required air volumes are to be roughly determined and allows you to edit the room settings. You can edit the settings of several rooms together by checking the et column in the rows of the rooms to be edited together.

For rough calculations, you can calculate air volumes on the basis of an air exchange rate or an area-related minimum volume flow rate or specify a fixed value. The air volume flow rate with the highest value is used as the required air volume. This value is displayed in the Maximum Volume Flow Rate column. You can view the minimum volume flow rates determined at room level on the Results tab.

By clicking you have the possibility to copy the contents of the table with or without column heading and paste it into Excel.

If you have selected individual rows or cells, you can copy the selected data with the key combinations Ctrl+C (with column heading) or Ctrl+Shift+C (without column heading) and paste it into Excel, for example.
