Constructing Walls

Shows step-by-step how to construct walls based on a 2D drawing.

The architecture is available as a 2D drawing. You want to reconstruct the walls of the building in 3D.

Requirements:

You have linked a 2D drawing to your model.
You have adjusted the storey height.
Your current view is the floor plan view of the storey on which the walls are to be constructed.

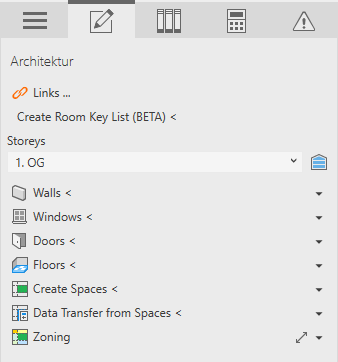

Open the Walls section.
If you want to construct an exterior wall, activate the Exterior wall check box.
You can set the wall thickness as follows:
- Click Get dimension to measure the thickness of the wall to be drawn.
- Enter the wall thickness in the text box.
- Select a wall type from the drop-down list.
Click Walls < and construct the corresponding walls.
- As soon as the function is enabled, you can enable the Select lines option in the Revit menu ribbon under Modify | Place Wall ➤ Draw. You can then use the tabulator key to select the complete course of the wall and create it with one click. In the options of this function under Baseline, select the Structural Layer entry: Outer edge.
- Inaccurately constructed walls can be corrected with the Revit functions of the Modify tab in the Revit Ribbon.

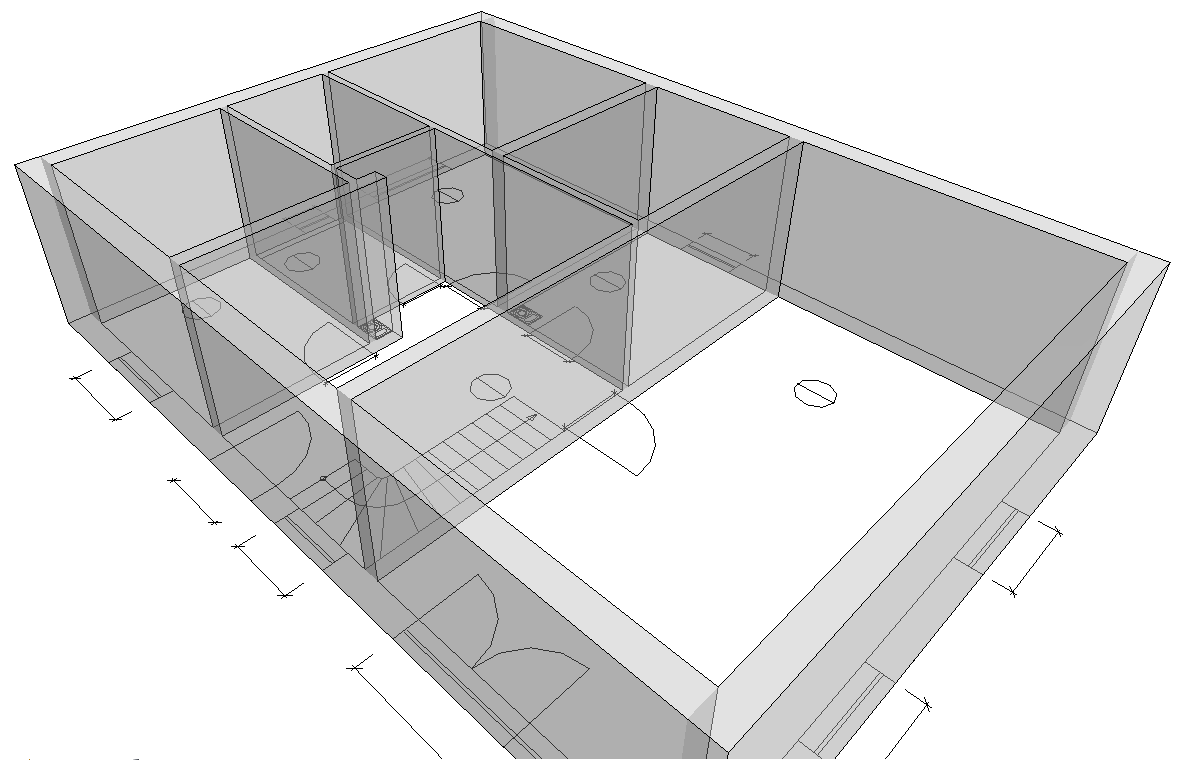

The walls are constructed at the correct height, connected and marked as bounding the room.
