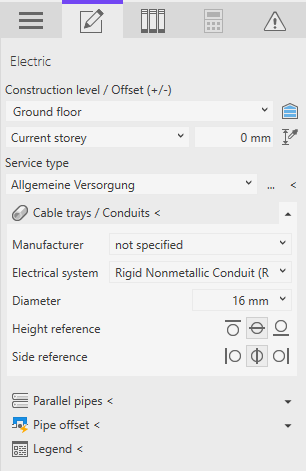

Select the reference level and offset in the Construction level/ Offset (+/-) section. If the datum level conforms to the reference level, select Current storey.
-
If necessary, enter an offset to the reference level.
If the cable tray is to be constructed below the reference level, enter a negative offset.
-
Select the Service type.
-
Select the desired Electrical system in the area Cable trays / Conduits.
-
Select the desired Height and Width.
-
Specify the Height reference and the Side reference.
-
Click on Cable trays / Conduits < and design the route of the cable tray.
The cable tray is constructed with the settings made.
