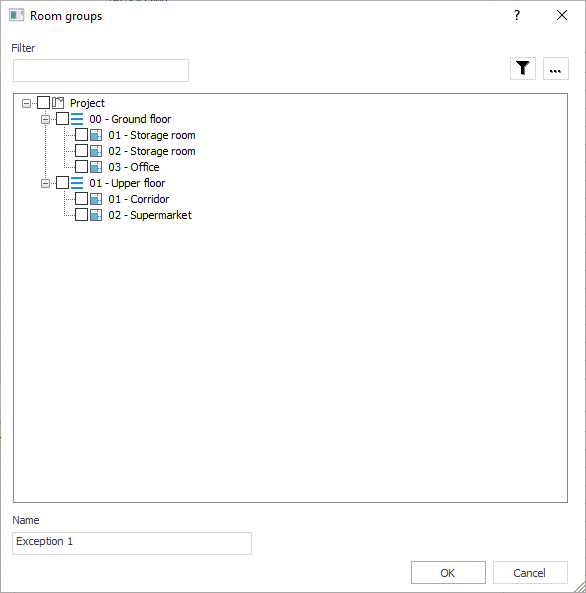

In this dialog you specify the rooms that are to be included in the room group. You can then assign calculation methods that differ from the room type to the group.
You are here
Module Overview ➤ Ventilation ➤ Project, Building Part (Building Structure) ➤ Air Volumes ➤ Calculation Method … ➤
(Column “Room Group”)
Filter
In this area you can filter the rooms of your project using search terms and regular expressions (regex).
Filter
Filters the rooms of your project according to entered search terms. You can perform filtering using regular expression (ECMAScript variant of regex) and thus extend the filtering possibilities.
The following table provides examples of using regular expressions.
|
Search with regular expression |
Search result |
|---|---|
|
Toilet|Bathroom |
Displays all rooms with the text WC or Bathroom in their name. |
|
[WLA] |
Shows all rooms whose name contains the letter W, L or A. |
|
^M |
Shows all rooms whose name starts with the letter M or m. |
|
[0-3] |
Shows all rooms whose number contains one of the digits 0, 1, 2 or 3, for example 10 Storages. |
|
^Storage\s\d |
Shows all rooms whose name contains the text Storage, a following space and a following digit, for example, Storage 3. |
|
^Storage\s\D |
Shows all rooms whose name contains the text Storage, a following space and a following letter or a following special character, for example, Storage B. |
|
1. |
Shows all rooms whose name contains the digit 1 and any following character. |
: Applies the filtering of the rooms to the search term entered under Filter and any regular expressions used.
: Shows a list of examples for the use of regular expressions, which you can apply to the search field Filter by selection.
Room List
Defines which rooms are included in the room group. The unfiltered list shows the building structure of your project with all rooms. When filtered, the rooms are displayed in the building structure according to the applied filter. Only rooms that are not yet assigned to a room group are displayed.
Name
Defines the name of the room group. By selecting the first room in the room list, the name of the room is adopted in order to clearly identify exceptions for individual rooms. Selecting another room restores the default designation.
