Placing a Component in Revit

Shows step-by-step how to place a component from LINEAR CAD Browser in Revit.

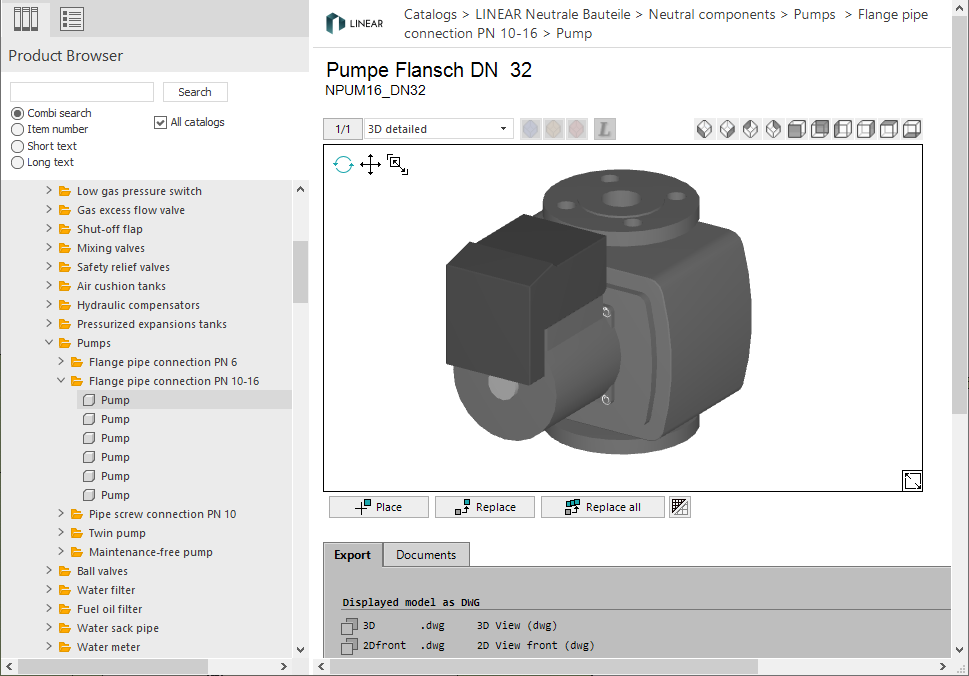

Click Place.

Revit is enabled and the component can be placed.
Place the component in as desired in Revit.
Adjust the component as needed and press ESC.

LINEAR CAD Browser is activated again.

When placing multi-part components (e.g. split heat pumps), after inserting an element in Revit, the LINEAR CAD Browser automatically switches to the element of the component that is still to be installed.

The component is installed at the desired position and is taken into account in the calculation.
