LINEAR Revit V26

Elongating Fitting

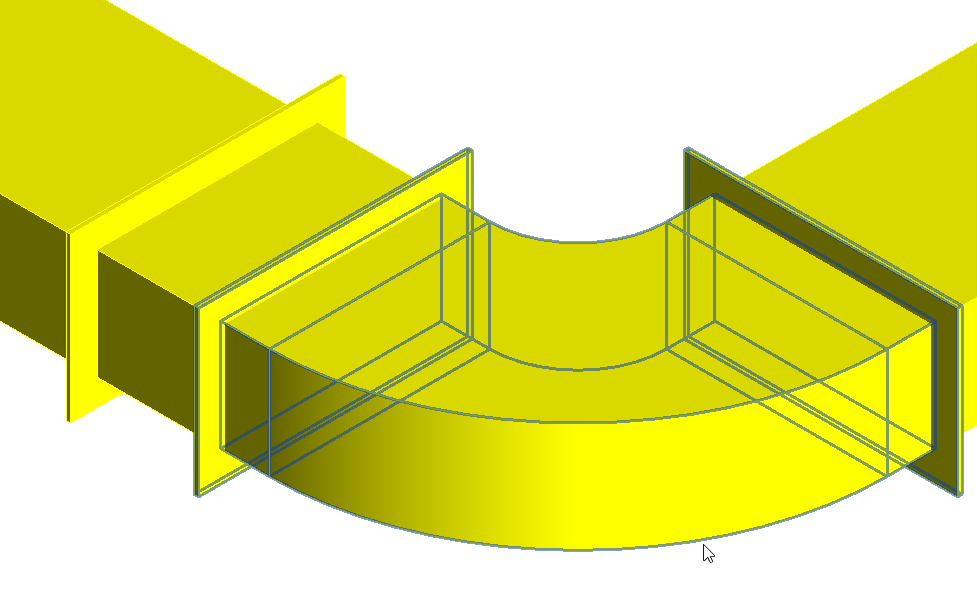

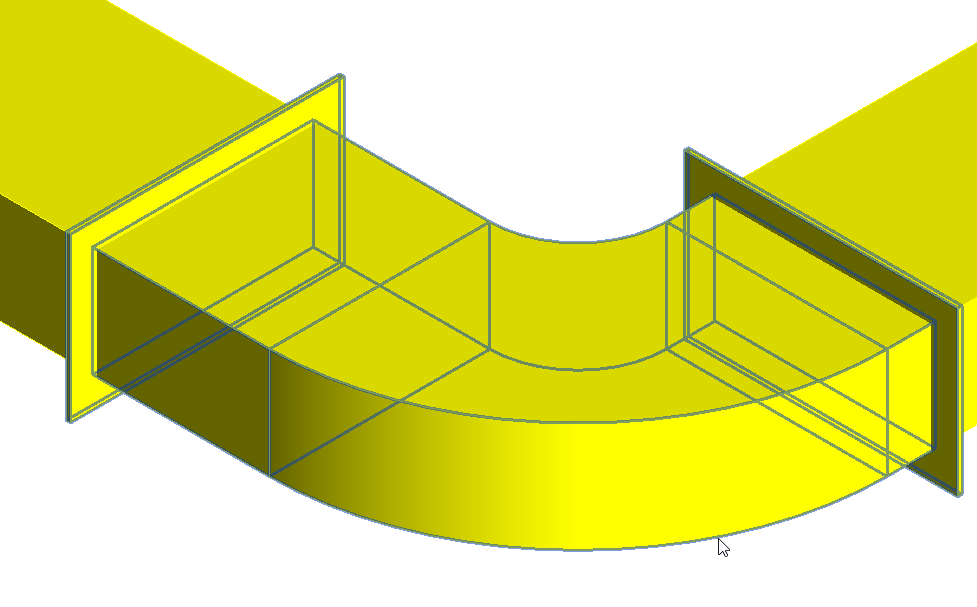

Shows step-by-step how to replace remnants of branches or bends with elongated fittings.

Open the Section/delivery lengths < section.
Click on Elongate fitting <.
Follow the instructions that appear.

If the program does not find suitable parameters for elongation for the fittings used, a corresponding message is issued. In such a case the elongation must be done manually.
