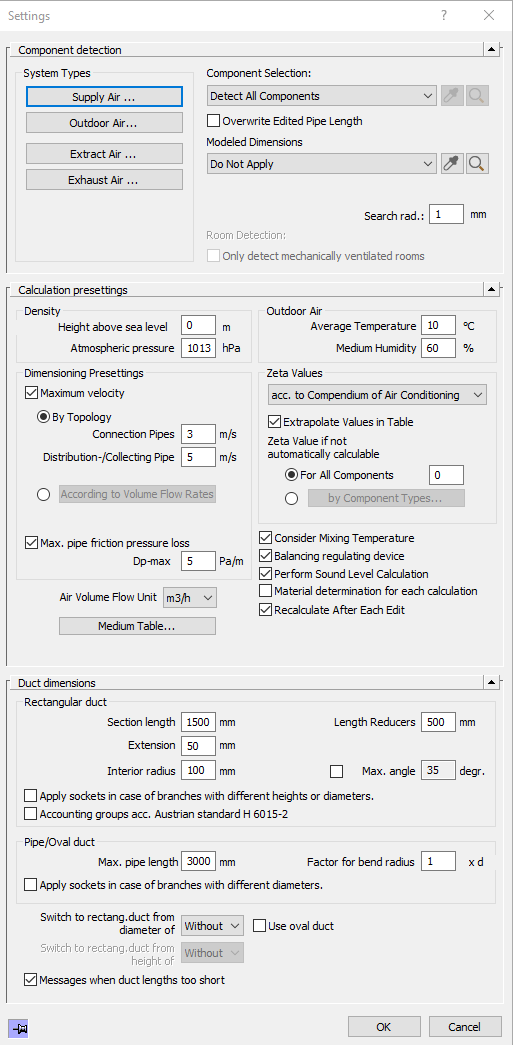

In the Component Detection area, decide whether Modeled Dimensions should be transferred during detection, not transferred, or only transferred for a selection.
-
In the Calculation Presettings section, enter the Elevation above Sea Level for your project to determine the correct air pressure and thus the density of the medium.
-
Check and correct the values for the Outdoor air if necessary.
-
Under Dimensioning Presettings, specify whether dimensioning should be based on maximum speed and/or maximum pipe friction loss specifications and adjust the corresponding values if necessary.
-
In the Zeta Values section, specify how the zeta values are determined.
-
Deactivate the option Detect Material with every Calculation if, for example, you have a large project and want to reduce the calculation time.
The basic settings for the calculation have been made and are now taken into account during the calculation.
