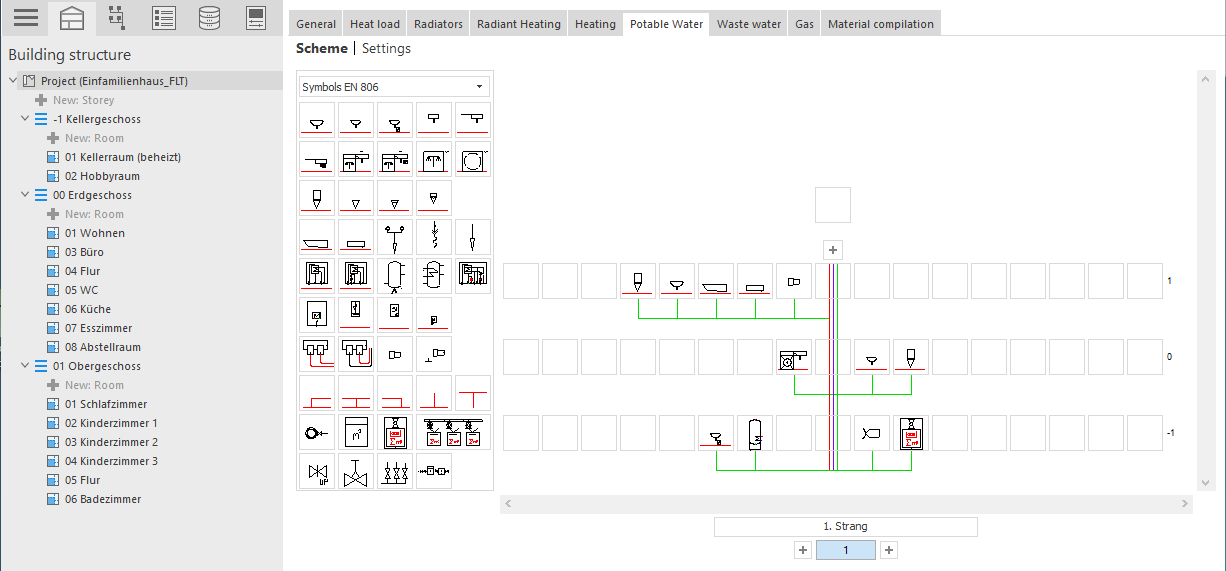

Make sure that the Building structure is set to project level so that the Settings area is available to the right of the Schema area.
-
Click Settings.

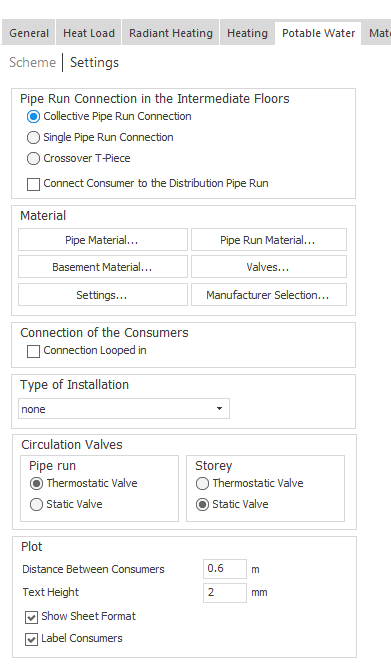

The project level Settings opens.
-
In the Material section, click on Settings....

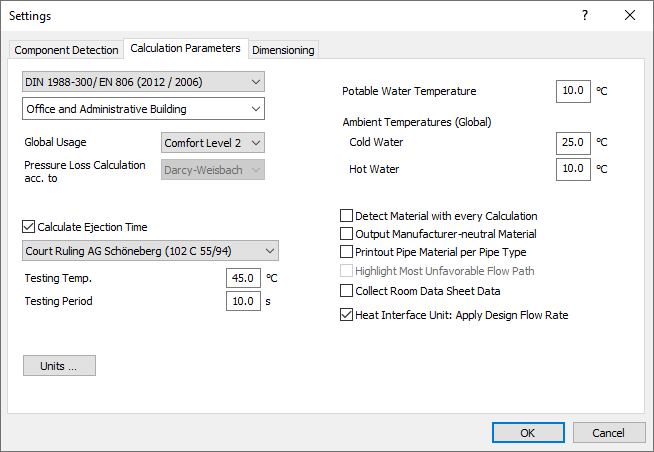

The Settings dialog opens.
-
Make sure that your desired calculation method is selected in the upper drop-down list and adjust the building type via the second drop-down list if necessary.
-
If necessary, adjust the comfort level under Global Usage.
-
Check the Potable Water Temperature (PWC) and the Ambient Temperatures (Global) and adjust the values if necessary.
-
Specify which of the checkbox options should be taken into account in the pipe network calculation.
-
Switch to the Dimensioning tab and adjust the limits for dimensioning in the left area if needed.
-
In the right area of the Dimensioning tab, check the maximum speeds for different pipe types and adjust the values if needed.
-
Set the desired checkbox options for dimensioning in the lower area and close the dialog with OK.
You have configured the settings for the pipe network calculation of a scheme.
