Creating Room Components

Shows step-by-step how to create the components of a room.

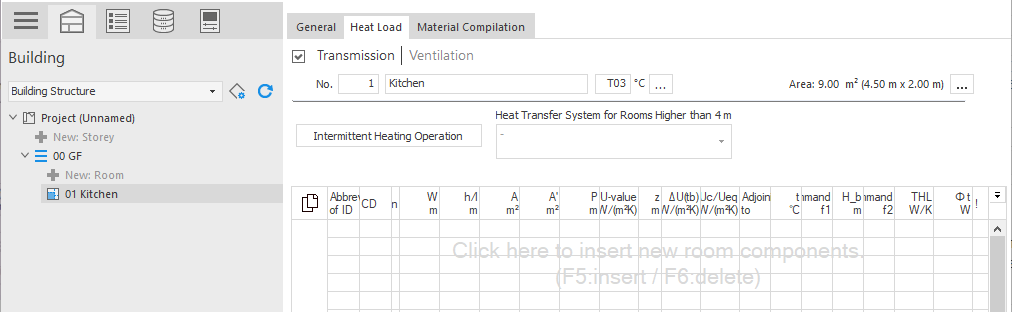

  1. Click in an empty cell of the table in the Abbrev. of ID column.

  2. You can

    • enter a component code manually or
    • select a component after clicking on and confirm the selection by clicking on OK.

  3. Enter the dimensions of the component and complete all known parameters of the component.

  4. Create the remaining components of the room as described.

All components of the room with their respective required parameters are created.
