Details on Results, Building – h,x, Diagram

Information on the h-x Diagram tab in the dynamic cooling load calculation results at building level.

You are here:

Module Overview ➤ Cooling Load Dynamic ➤ Result, Cooling Load Dimansioning ➤ h,w Diagram

Diagram

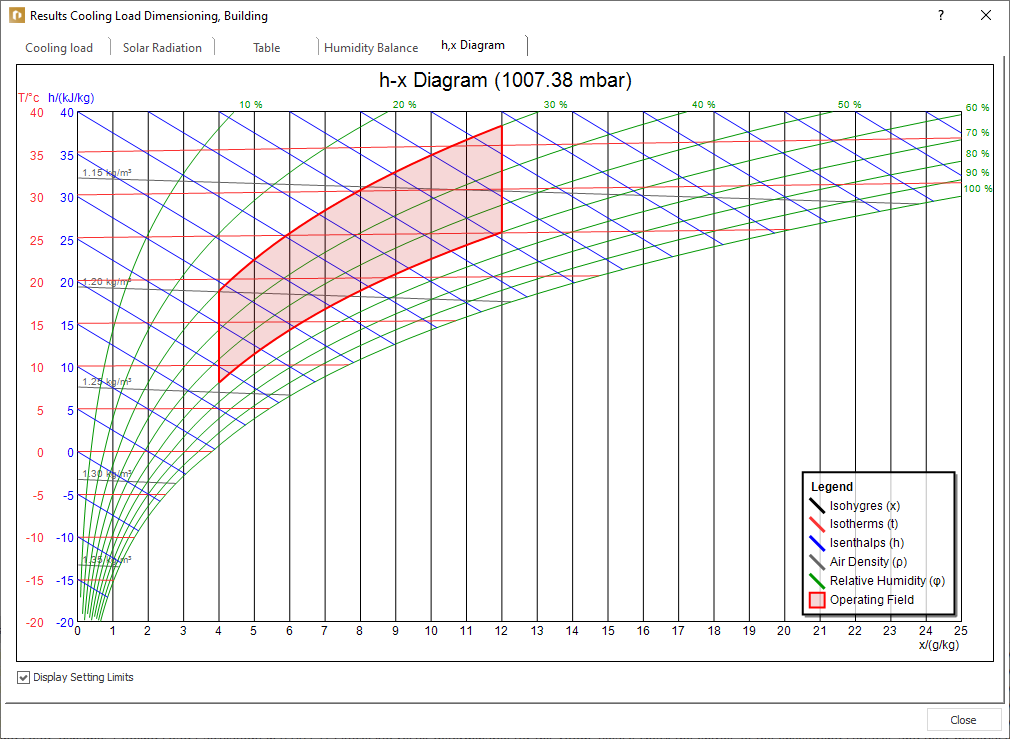

Display of a Mollier-h-x diagram with optional marking of the operating field.

Display Setting Limits

Enabled: Marks the comfort zone that was specified in the options by lower and upper limits of absolute and relative humidity in the diagram.
