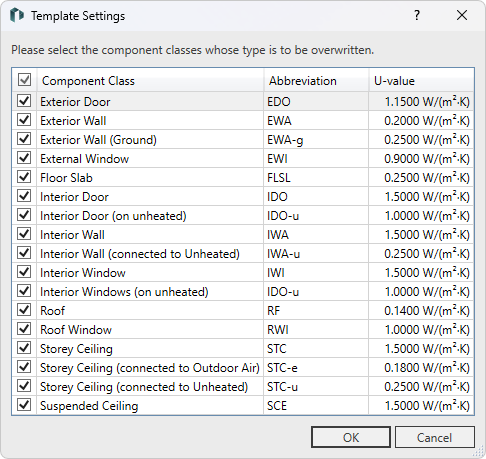

In this dialog, you map the component classes from Revit to the components in LINEAR Building with fixed U-values.
You are here
Project-Tab ➤ Discipline Architecture ➤ Analyse Tab ➤ Building Detection ➤ Activation of the Checkbox "Use Template Types" ➤
Check boxes
Use the checkboxes in the first column to select whether a component class is mapped to a component type in LINEAR Building .
Enabled: For the component class, the structure used in Revit is not imported into LINEAR Building . Instead, the layer composition for the enveloping surface is used, which is stored in LINEAR Building under the Short Name .
Disabled: During the building detection, the layer composition modeled in Revit is transferred to LINEAR Building for the enveloping surface.
Component Class
The column lists the Revitcomponent class that is used for mapping to the component types in LINEAR Building .
Abbreviation
The column lists the short name of the component type from LINEAR Building to which the Revit component class is mapped in the Component Class column during building detection.
U-value
The column lists the U-value that is used for mapping the building Component Class to the Short Name during building detection.
