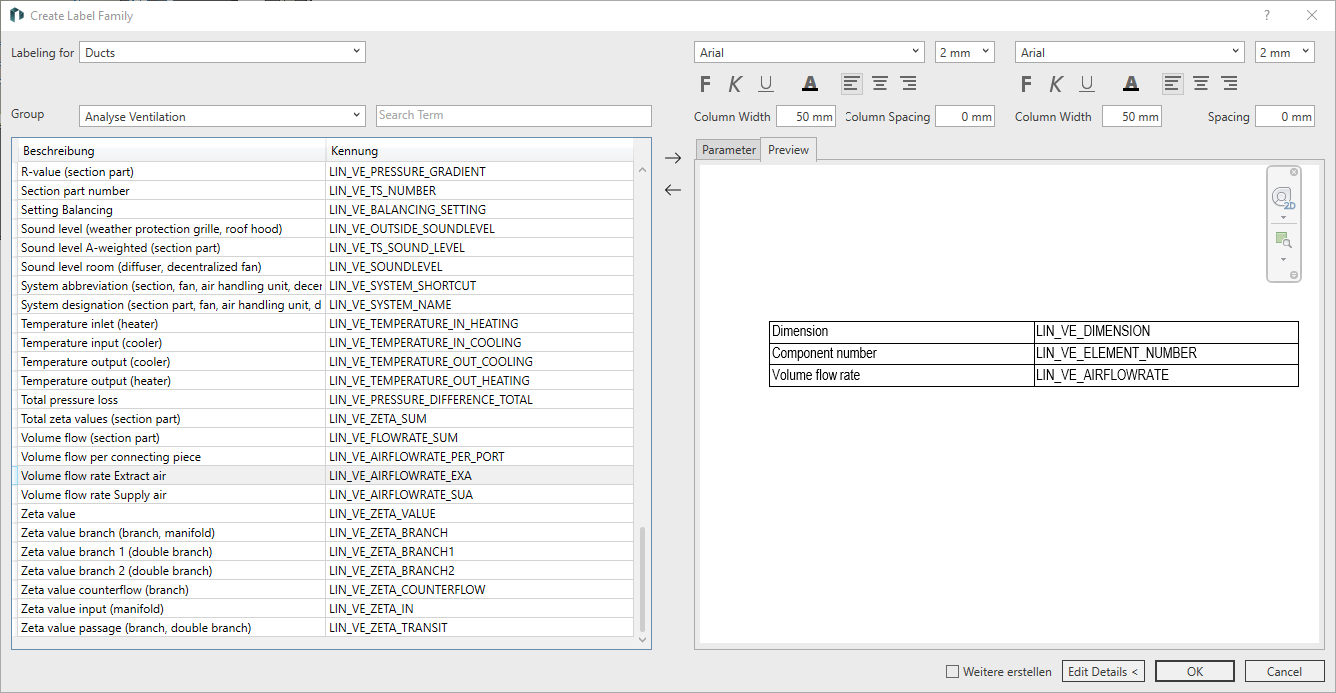

Select a suitable entry from the drop-down list Labeling for.
-
Use the Group drop-down list to select an entry for the appropriate discipline or workflow.
The entries in the table of selectable labeling parameters are filtered according to the selection.
-
Click to select a parameter from the table.
-
Click on the arrow symbol
to add the selected parameter to the table on the right and thus to the custom labeling family. -
Repeat steps 3 and 4 to select further parameters for the label family.
-
Change the order of the label elements in the selection using drag and drop.
-
Set the formatting for displaying the parameter description and the parameter value in the top right of the dialog.
-
Click on OK.
A file explorer opens.
-
Select a file name and a path and click OK to save the label family.
You have created, customized and saved the custom label. You can now use this as a label file in the Labeling dialog in the Configure Label section to label the model.
