LINEAR Revit V26

Adding and Configuring a System for Preselection

Shows step-by-step how to add and configure radiant heating and cooling systems for system preselection.

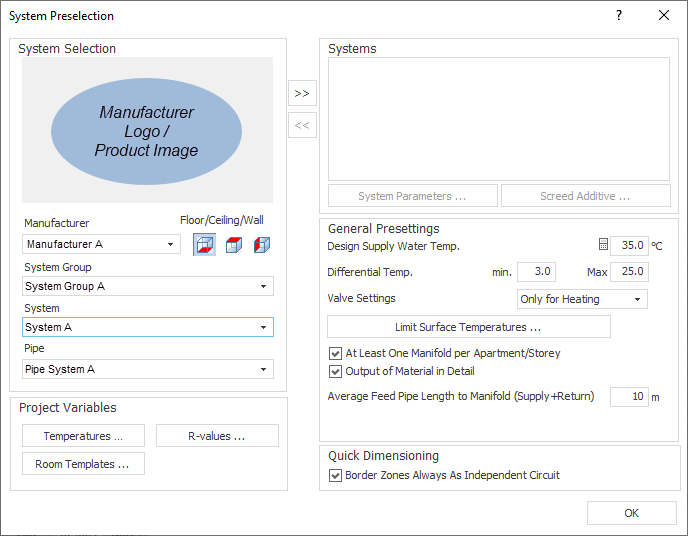

  1. In the System Selection section, establish whether a floor, ceiling or wall system is to be added by selecting the corresponding button.

  2. Determine the Manufacturer, the System Group, the System and the Pipe to be used.

  3. Click .

    The system is now in system preselection.

  4. Click System Parameters ... and adjust the system parameters to your project’s requirements.

  5. Click Screed Additive ... and add a screed additive.

  6. Adjust the default settings in the General Presettings section to your project’s requirements.

  7. Determine whether the design is to be Border zones always as independent circuits.

You have added and configured the radiant heating and cooling systems for preselection.
