Shows step-by-step how to dimension multiple rooms in a single step with a radiant heating and cooling system.
Start the Quick Dimensioning function.

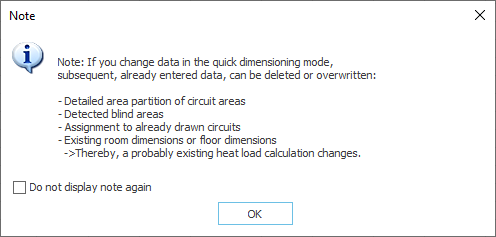

The following Note appears:
Read the Note and confirm with OK.
Quick dimensioning is activated.
Click on the Re-Dimension button in the symbol bar.

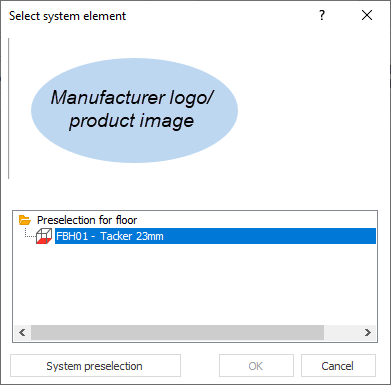

If you have multiple systems in System Preselection, the Select a System Element dialog opens. If you have only one system in System Preselection, the rooms are automatically designed with this system.
If necessary, select the desired system element and confirm with OK.

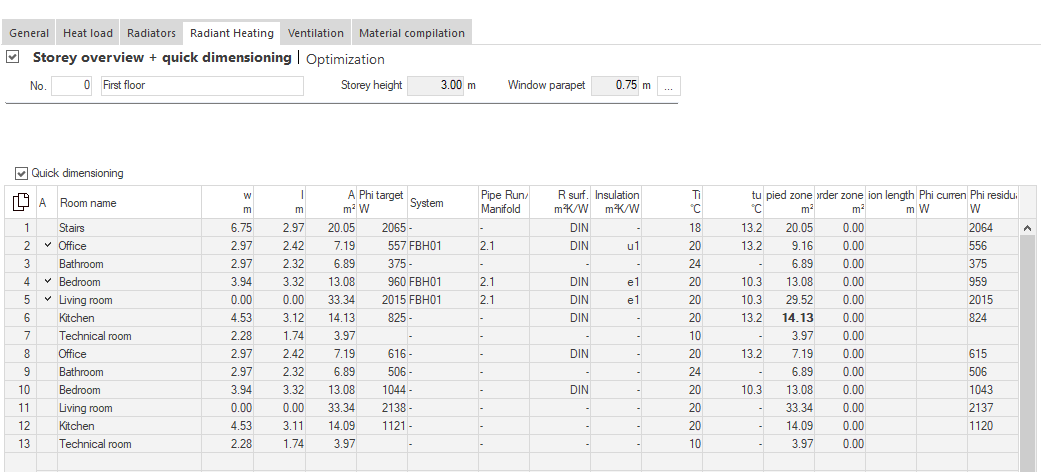

You have designed all rooms on the storey with the selected system.
