LINEAR Revit V26

Changing properties of Multiple Circuit Zones

Shows step-by-step how to change the properties of multiple circuit concurrently.

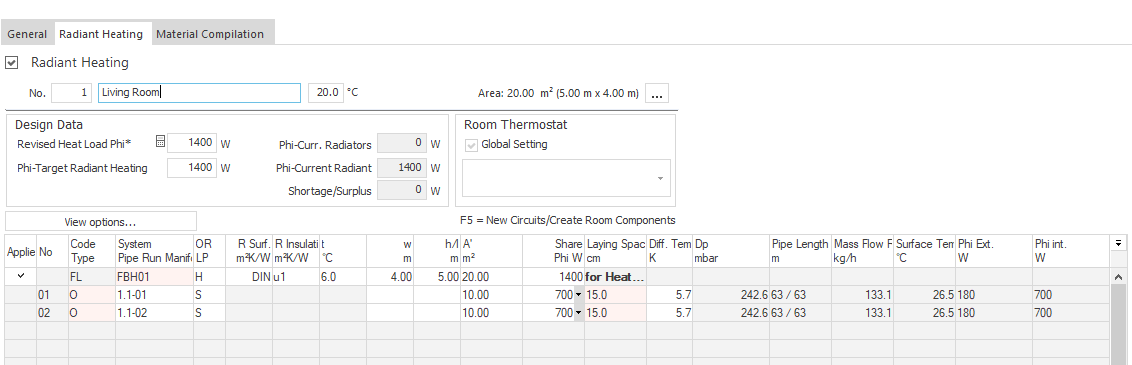

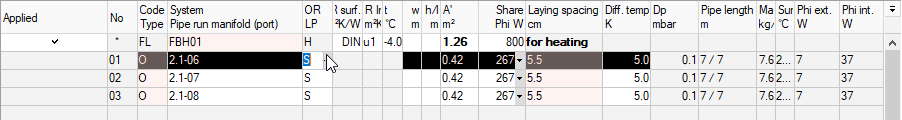

  1. Click in a cell of the property to be changed, in our example HR VM.

  2. Hold down the left mouse button to select the rows in the circuit to be modified.

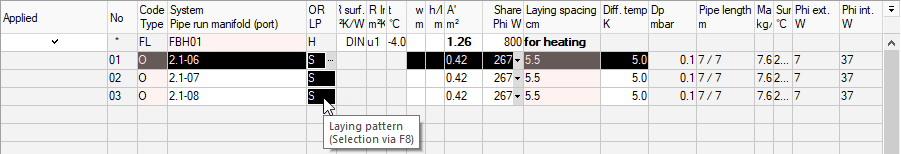

  3. Press F8.

    The context menu or the dialog of the property to be changed opens.

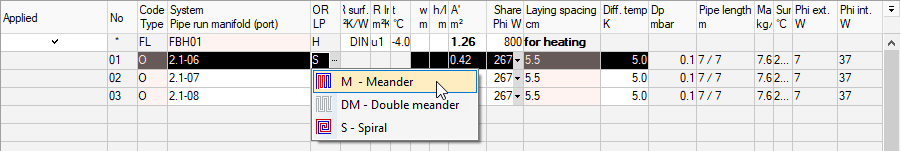

  4. Modify the property to the desired setting.

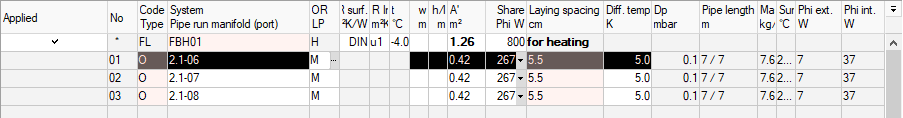

You have made the Modification in the marked lines.
