LINEAR Revit V26

Creating a Feed Pipe Zone

Shows step-by-step how to create feed pipe zones in rooms.

  1. In the Building Structure, select the room in which you would like to create the feed pipe.

  2. Click Dimension New Heating/Cooling Circuits in the symbol bar and select Feed Pipe in the context menu.

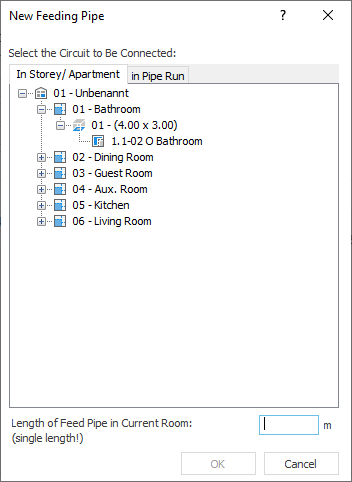

    The New Feed Pipe dialog opens.

  3. Select the circuit to which you would like to connect the feed pipe.

  4. Enter the actual length of the feed pipe in the current room and confirm with OK.

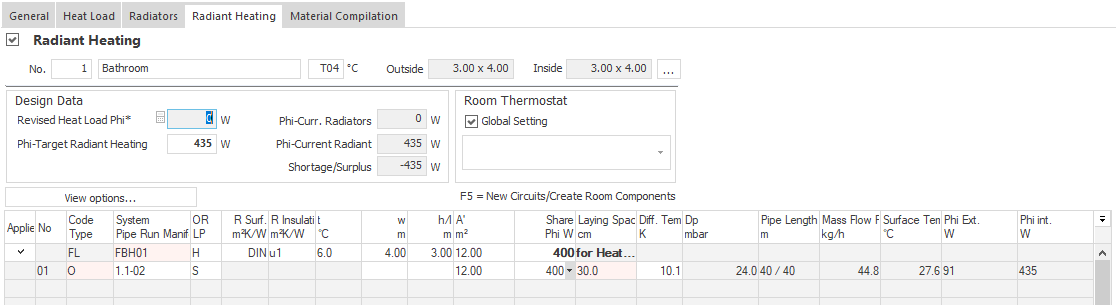

In connection with the desired pipe spacing, the required area and the return water pipe are set and the feed pipe zone will be displayed in the Code Type column of the table with the entry F.

In the pipe run view, the feed pipe between the manifold connection and the heating circuit is displayed.
