LINEAR Revit V26

Assigning Settings

Shows step-by-step how to assign changed settings of already constructed radiant heating circuits and radiant cooling circuits.

  1. Open the Pipe laying section.

  2. Select Simplified display if applicable.

  3. Change the required settings for the system, laying pattern or grid.

  4. Click Assign settings <.

  5. Select the radiant heating circuits or radiant cooling circuits that are to receive the new settings and confirm with Enter.

The selected radiant heating circuits or radiant cooling circuits have the changed settings.

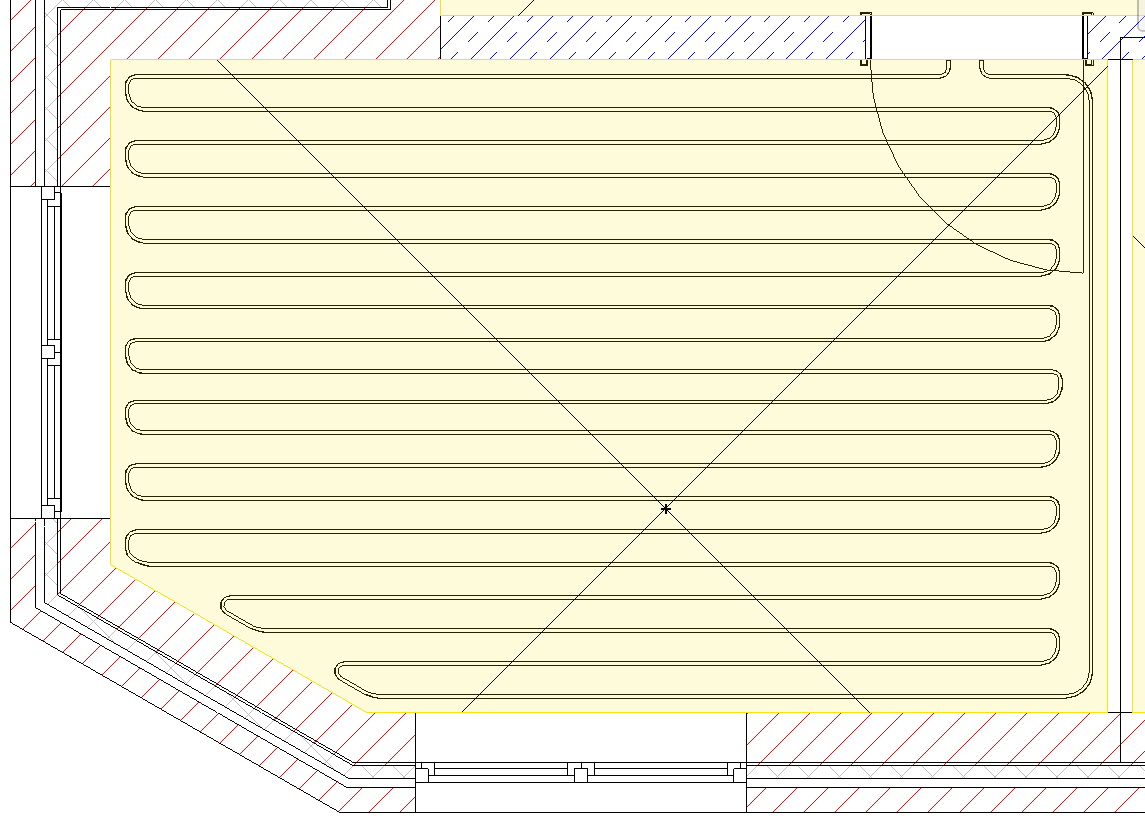

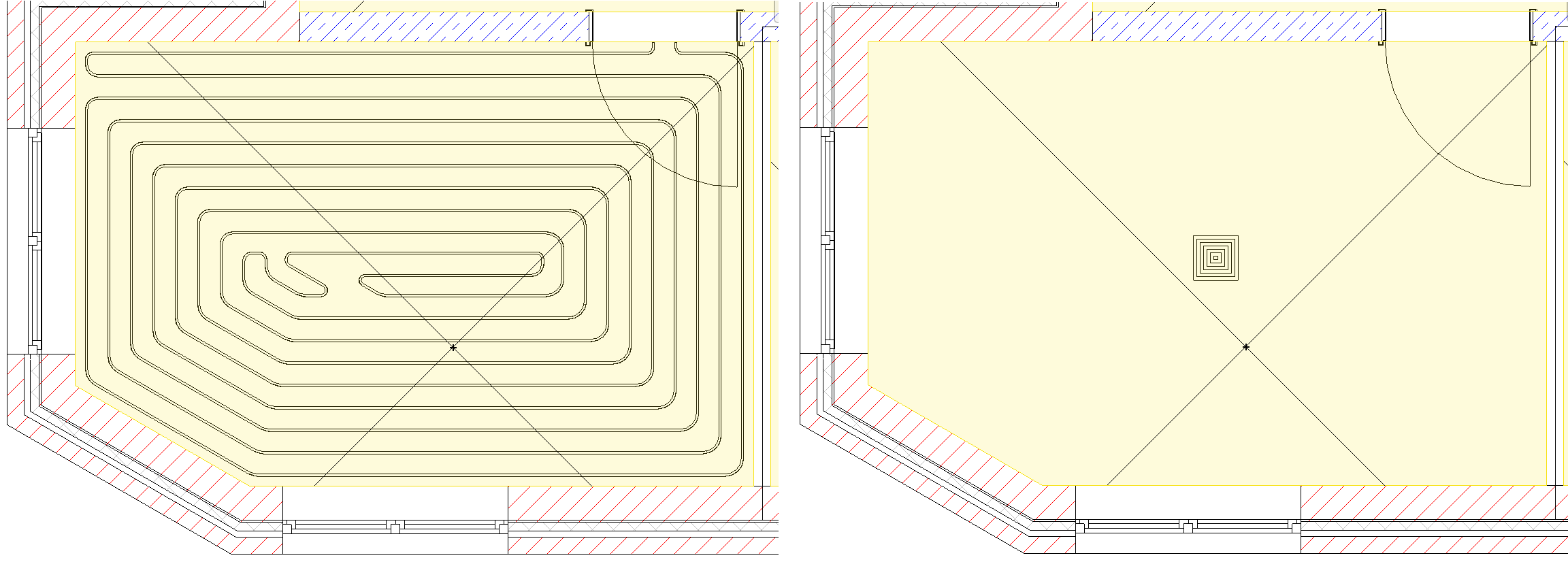

detailed rendering

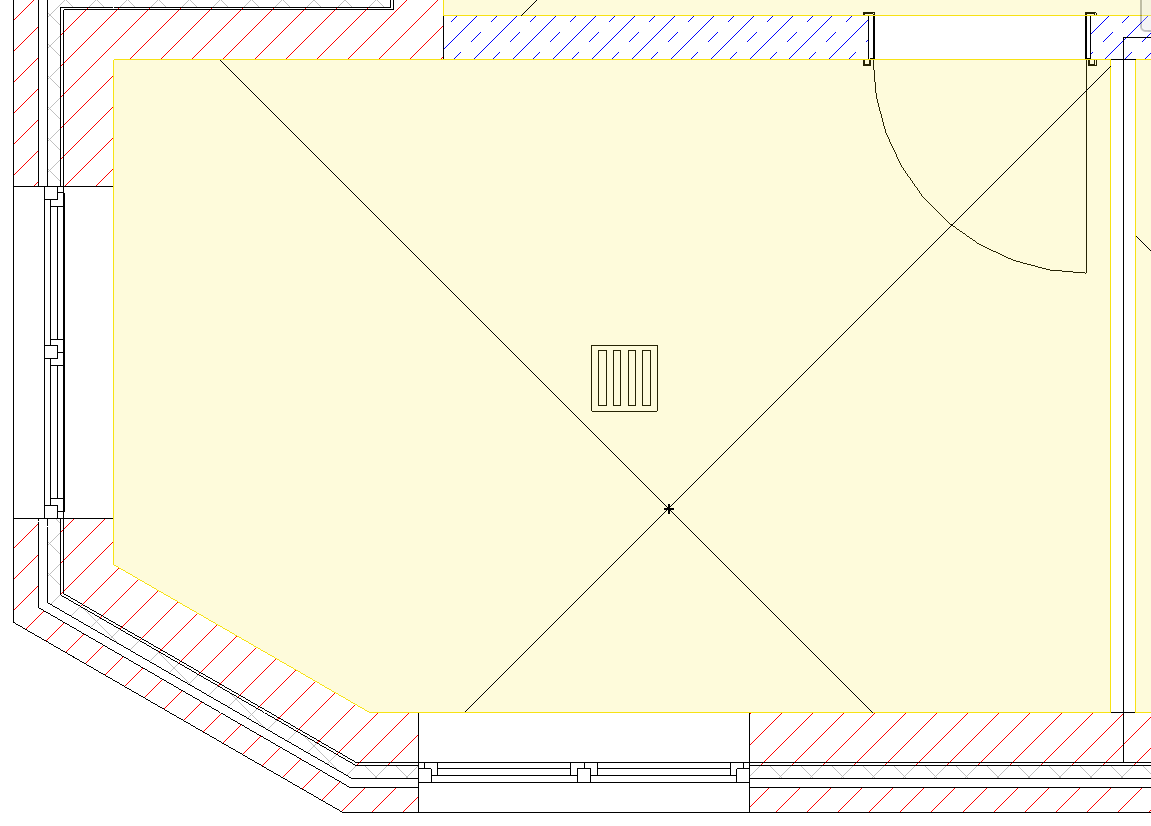

Simplified Display
