LINEAR Revit V26

Changing the Position of the Connections

Shows step-by-step how to reposition the supply and return connections of radiant heating circuits and radiant cooling circuits.

Open the Edit circuits section.
Use the drop-down list to determine the distance between the connections.
Click Place <.

If you want to place the supply and return connections independently of each other, use the Place freely < function.

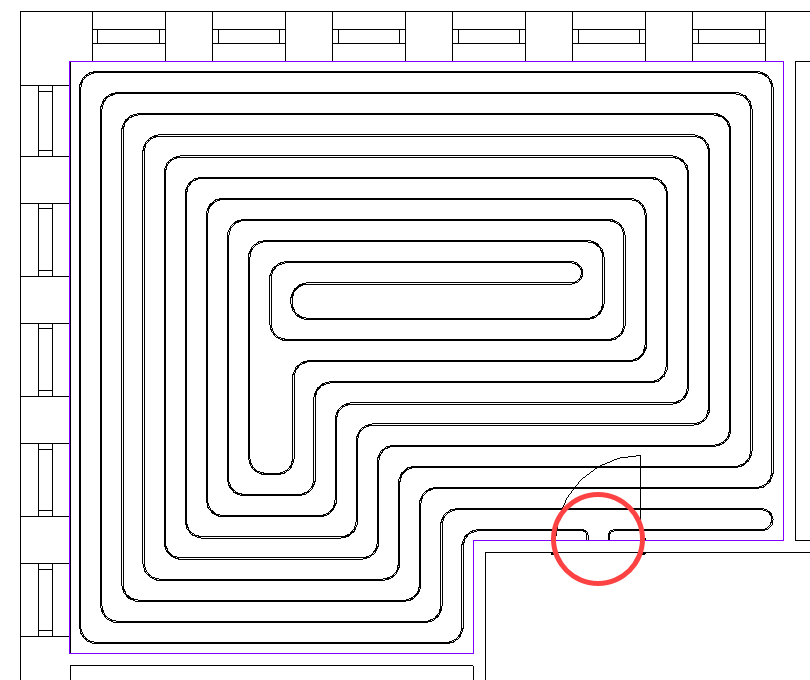

Select the radiant heating circuit or radiant cooling circuit whose connection is to be repositioned.
Select the new position for the connections.

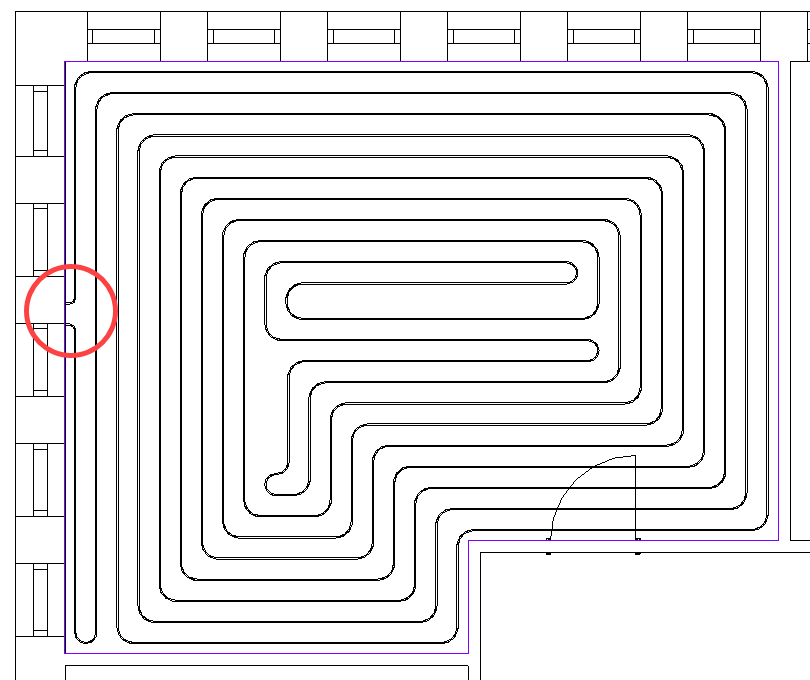

The connections have been repositioned.
