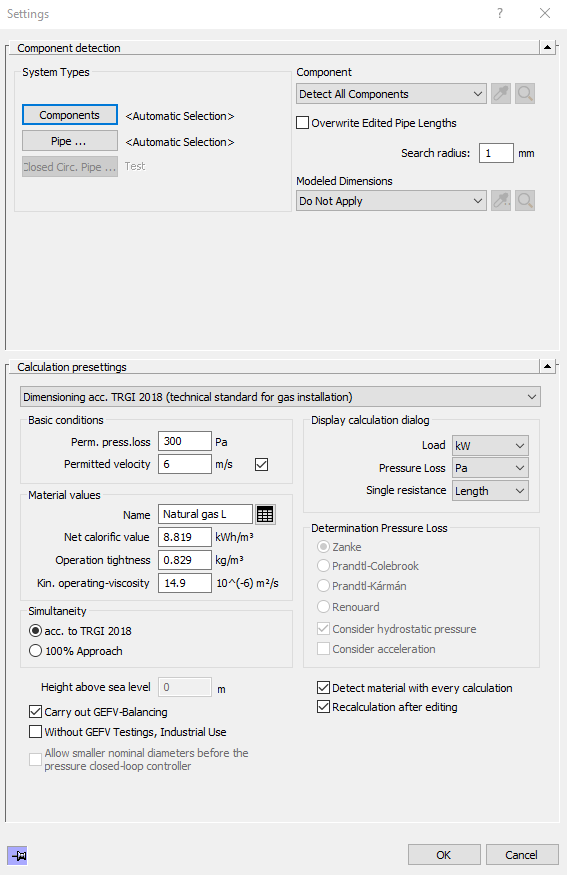

In the Component Detection area, decide whether Modeled Dimensions in the network should be transferred during detection, not transferred, or only transferred for a selection.
-
In the section Calculation Specifications, select the desired design method from the drop-down list.
-
Check the Basic conditions and adjust the values if necessary.
-
If necessary, specify the method to be used for the Pressure Loss Determination.
-
Specify whether the gas excess flow valve should be calibrated or whether no gas excess flow valve checks should be performed.
-
Deactivate the option Detect Material with every Calculation if, for example, you have a large project and want to reduce the calculation time.
The basic settings for the calculation have been made and are now taken into account during the calculation.
