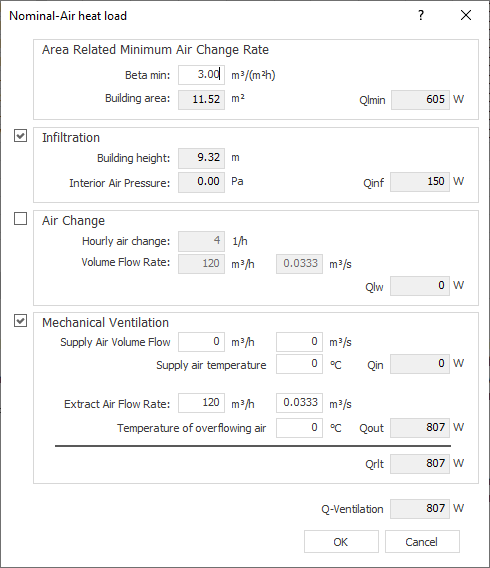

Under Beta-min, enter the minimum volume flow rate for the minimum hygienic air exchange.
The default value for residential buildings is 3 m3/(m2h).
-
Activate the Infiltration option if it is to be included in the determination of the nominal-air heat load.
-
Activate the Air change option and enter the hourly air change if an hourly air change has been agreed.
The Mechanical ventilation option is deactivated.
-
Activate the Mechanical ventilation option if mechanical ventilation is intended in this room.
The Air change option is deactivated.
-
Enter the supply and exhaust air volume flow rate with the corresponding temperature in each case.
The highest load of the activated ventilation types is entered in the Q-Ventilation field, and is used for further calculation.
