Configure Ventilation at Room Level

Shows step-by-step how to set the ventilation system at the room level.

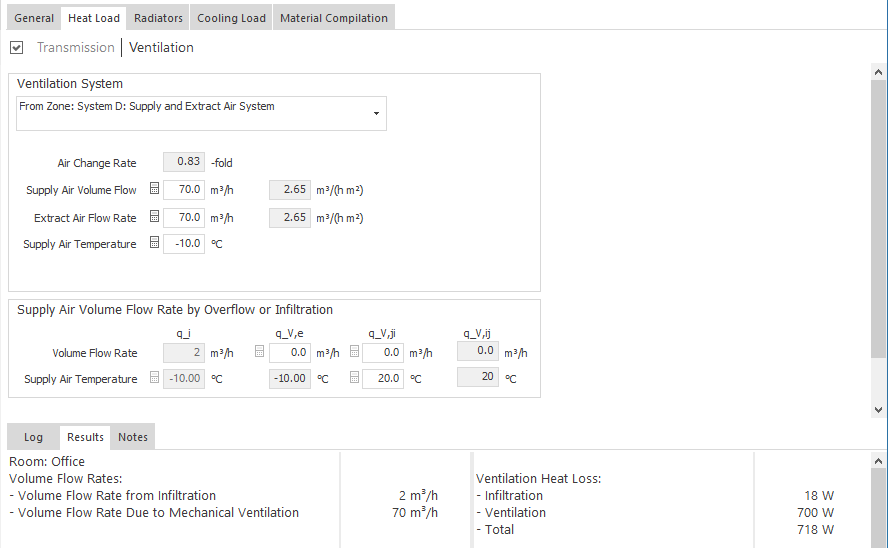

Enter the Spec. Minimum volume flow rate.
If the air handling system in this room should differ from the globally set one, select an Air Handling System.
Enter the Air Exchange Rate or the air flow rates of the ventilation system.

The Ventilation for this room is configured.
