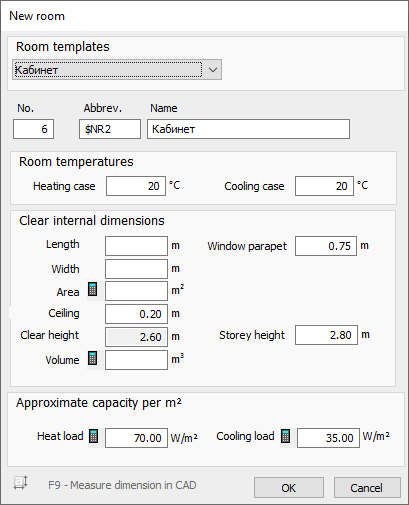

Details on New Room

Information on the New room dialog in building structure.

You are here:

Module overviewModuleBuilding structureNew room

Room templates

Drop-down list to select a room template. The room template contains a room name and room temperatures for the heating and cooling case.

Number

Is used to identify the structural level and simultaneously for sorting in the tree structure. The number may only appear once on the respective structural level.

Abbreviation

May contain a text and/or a variable. Available variables:
  • one to three digit numbers
  • Numbers and abbreviations of superordinate levels
In the corresponding context menu, predefined variables are available for selection.

Name

Free text to be entered for this structural level.

Room temperatures

When creating a room manually, the room temperatures for the heating and cooling case were taken from the selected room template. Temperatures can be adjusted manually if required.

Clear internal dimensions

The clear internal dimensions of the corresponding room. These dimensions are used to calculate the room volume to determine the heat loss of ventilation in the heat and cooling load].

Length, Width Enter the clear internal dimensions of the room in meters. Click to open the Room Dimensioning dialog where you can specify wall thicknesses.

Area: The clear building area is automatically calculated from length and width. The value can be overwritten and is then shown in bold. Click enters the calculated value again.

Celling thickness, clear height: These values are taken from the general specifications of the storey level. You can overwrite the Ceiling thickness with your own value, e.g. to realize a suspended ceiling. As soon as you modify the ceiling thickness in the general specifications at storey level, the user-defined value is also overwritten with the one from the storey level. The building detection treats a possibly existing floor construction as belonging to the ceiling and adds it accordingly: With 300 mm ceiling thickness and 100 mm floor construction, the detection enters 400 mm ceiling thickness. Suspended ceilings are not taken into account in the clear height, since air volumes behind them are relevant in the calculations.

Volume: The volume is determined automatically from the values entered. The value can be overwritten and is then shown in bold. Click enters the calculated value again.

Parapet height: Window parapet height for the windows in this room. The value is used in radiator design to determine the height of radiators.

Approximate capacity per qm

Clicking opens the Approximate heat load, in which you can select a specific approximate capacity depending on the building type. You can also enter a customized value.
