What's new

LINEAR Solutions V26 - Whats New

Here you can find all new features of the current version as well as all new features of the last versions! We update the list with the release of the features to the respective update (Feature Pack). You can easily download and install the update to the latest version via the LINEAR Installation Center.

Note: Most of the new features are only available for subscription customers.

For major releases (new version number) you need the corresponding licenses. You can request these as a subscription customer on our contact page.

Request new licences

Filter:
Customer request

Standards-Compliant Air Volume Calculation Now Also for Garages


LINEAR Solutions V26.0

The air volume calculation in LINEAR Building has been expanded at the request of numerous users from our Idea Channel to include an additional calculation method: you can now also determine outdoor air volume flows for garages in compliance with VDI 2053-1. This brings the total number of calculation methods for residential and non-residential buildings to 14.

The new method is seamlessly integrated into LINEAR Building and benefits from the familiar, consistent user interface. All parameters and calculation steps are managed centrally and uniformly. Particularly practical: changes in the air volume calculation automatically affect the heat load calculation. This keeps your design consistent and up-to-date – without manual intermediate steps or duplicate data maintenance.

Benefits at a glance

  • Determination of outdoor air volume flows for garages according to VDI 2053-1
  • A total of 14 calculation methods available for various building types
  • Seamless integration into LINEAR Building with a uniform user interface
  • Automatic link to heat load calculation for consistent results
Solutions for AutoCAD / CADinside
Solutions for Revit

Calculate Potable Water Schematics in Building According to International Standards


LINEAR Solutions V26.0

The international potable water standards already familiar from calculations in LINEAR Analyse are now also integrated into the hydraulic calculation of potable water schemes in LINEAR Building. This means: You can not only create schematic drawings in LINEAR Building, but now also calculate them according to international standards.

This allows you to benefit from consistent results across all design phases and programs and significantly increases design reliability and simplifies the processing of international projects.

Benefits at a glance:

  • International potable water standards are now also available in schematic calculations in LINEAR Building
  • Consistent results between Analyse and Building for worldwide designs
  • Higher design reliability through uniform application of standards across all modules

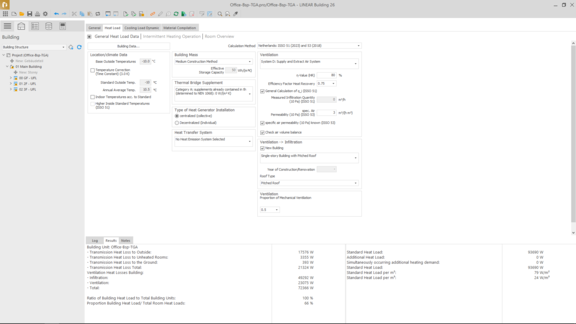

Planning According to Current Standards – ISSO 51 (2022) Compliance


LINEAR Solutions V26.0

The ISSO 51 – the Dutch guideline for the design and implementation heating systems – underwent a comprehensive revision in 2022. LINEAR Building version 26.0 has been fully updated to reflect the latest standards and implements all necessary adjustments. This ensures that your design always complies with current guidelines and meets regulatory requirements.

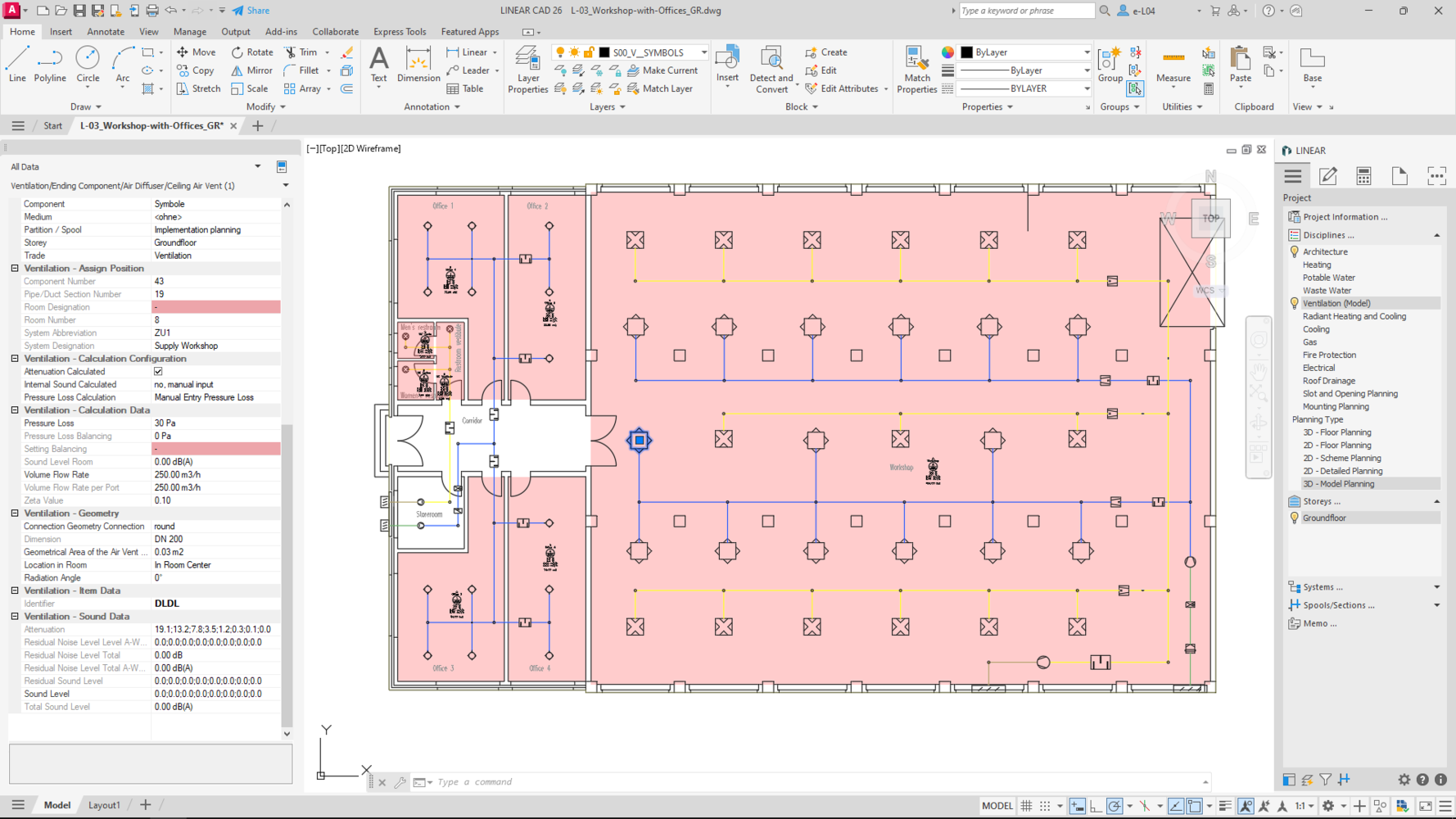

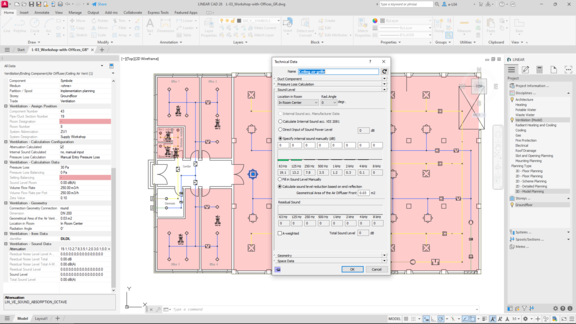

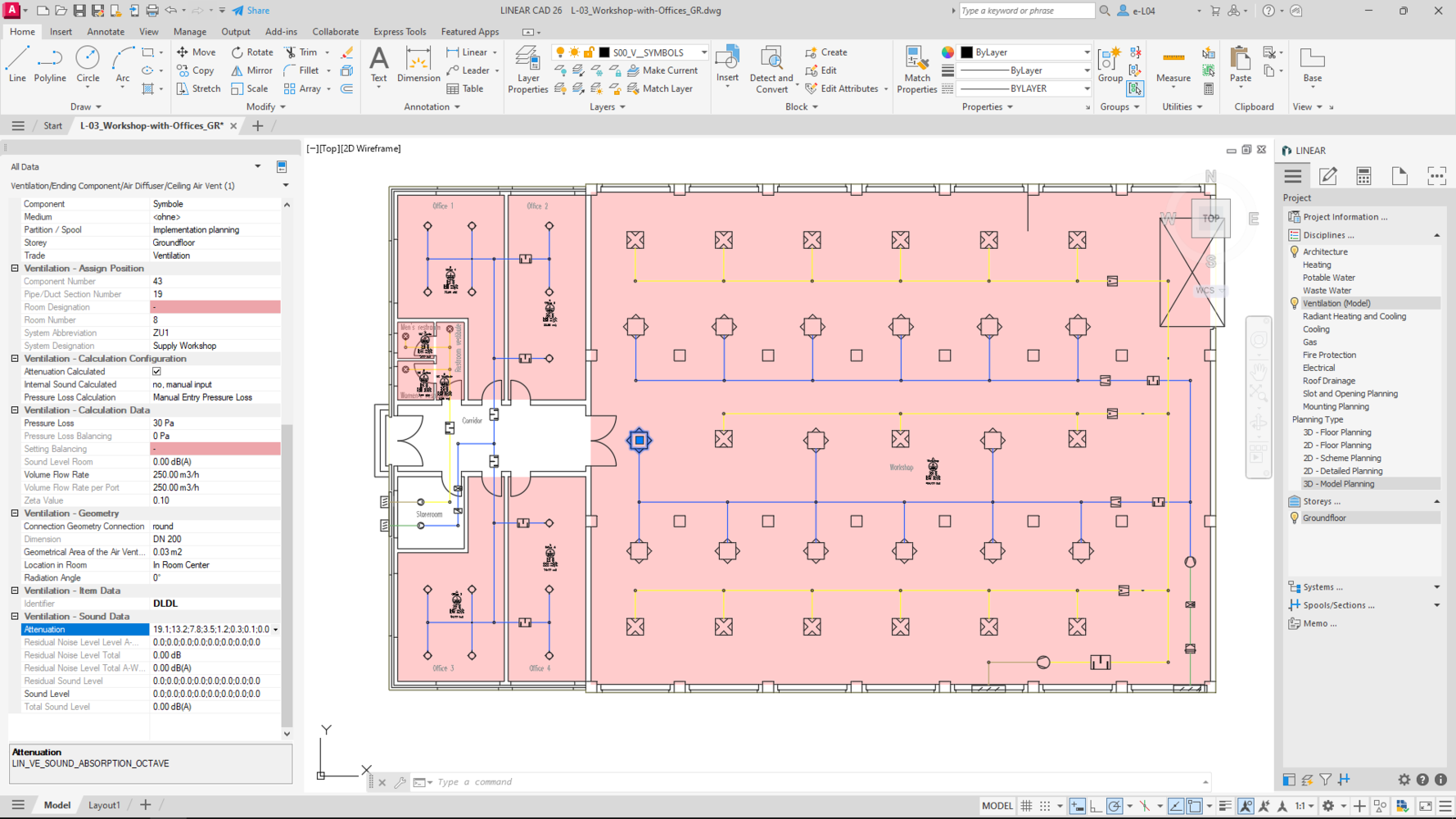

Open Dialogs Directly from Properties – For an Even Smoother Workflow


LINEAR Solutions V26.0

Since version 25.2, you’ve been able to edit relevant calculation parameters directly in the properties. This time-saving approach has now been extended to all input dialogs. They can now be opened directly from the properties – without detours through the Control Board or extra clicks. Thanks to this extension, you can make targeted adjustments to important parameters exactly where you’re already working in your design process. This shortens your workflow, speeds up data entry, and boosts overall project efficiency.

Benefits at a glance

  • Open input dialogs directly from properties
  • Instantly adapt relevant parameters where needed
  • Fewer clicks and faster data entry
Solutions for AutoCAD / CADinside
Solutions for Revit
Customer request

Enhanced Project Information with Layout-Specific Details


LINEAR Solutions V26.0

Direct community feedback - implemented: project information has been raised to a new level. You can now distinguish between project-specific and layout-specific data – enabling you to specifically store individual information per layout. This allows different drawing title blocks and documentation to be automatically filled with the correct data. This provides greater clarity and speeds up the design process.

Benefits at a glance

  • Distinction between project and layout details for flexible organization of project data
  • Individual information per layout without redundancies
  • Automatic population of appropriate title blocks with the correct data
Solutions for AutoCAD / CADinside
Customer request

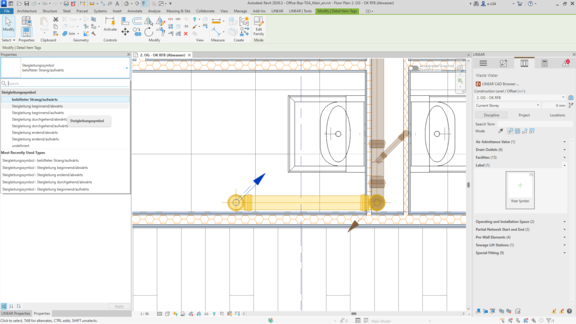

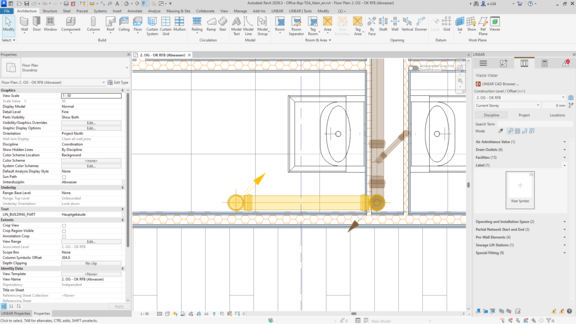

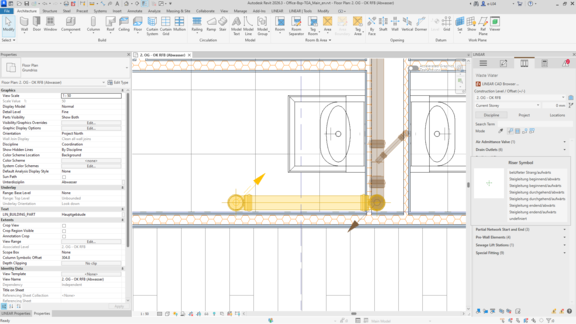

New Riser Symbols for Wastewater Aeration


LINEAR Solutions V26.0

More clarity in your floor plans: wastewater aeration pipes now stand out visually from other risers – instantly recognizable by a dedicated symbol. The new representation makes your plans clearer and reduces confusion during construction. Currently, you can manually edit the symbols via the library. Automatic consideration during symbol generation will follow in one of the upcoming releases and will further accelerate the workflow.

Advantages at a glance:

  • •    Dedicated symbols for wastewater aeration
  • •    Clear visual differentiation from other types of riser pipes
  • •    Improved readability and clarity of design documents
Solutions for Revit
Customer request

Calculated Duct Areas now Available as Parameters in the Properties


LINEAR Solutions V26.0

With version 26.0, we fulfill a frequently expressed customer request from the LINEAR Idea Channel: calculated duct areas are now available as parameters directly on the components and displayed in the properties. The values can be used without additional steps for evaluations, precise cost estimations, or seamless transfer to cost estimation software. Writing the parameter to the components must be actively triggered in the e-klimaX export, as the areas are not automatically updated when changes are made to the network. We therefore recommend that you only do this when no further changes to the network are expected. If changes do occur, the areas must be written to the components again.

Benefits at a glance

  • Duct areas directly available as component parameters
  • Immediate use for cost estimations and quantity evaluations
  • Seamless transfer to cost estimation software and downstream systems
  • Flexible evaluation to suit individual requirements
Solutions for Revit
Customer request

LINEAR Solutions Now Fully Available in Polish


LINEAR Solutions V26.0

With version 26.0, the LINEAR Solutions is now available with a fully localized Polish user interface. All menus, dialog boxes, the Control Board, and every function and tool have been professionally translated into Polish. This complete localization covers all modules – from LINEAR Desktop and LINEAR Analyse to LINEAR Building – allowing Polish-speaking engineers to work in their native language for the first time.

Benefits at a glance

  • Fully localized user interface for all LINEAR Solutions modules
  • Intuitive operation without language barriers for faster onboarding of new employees
  • Reduced error rates thanks to native-language dialogs and function descriptions
  • Optimized collaboration within international planning teams

The Polish user interface underscores LINEAR's commitment to the international market and makes the leading MEP design software even more accessible to engineering specialists in Poland.

Solutions for AutoCAD / CADinside
Solutions for Revit

Optimized File Structure for Enhanced System Security


LINEAR Solutions V26.0

Version 26.0 introduces an important structural adjustment to file management: non-executable files such as user standards and support files are now stored in the ProgramData directory, while executable program files remain exclusively in the protected Program Files directory. This separation follows modern IT security standards and effectively prevents malware from accessing critical system components. Administrators benefit from simplified permission management and and effective implementation of security policies.

Benefits at a glance

  • Improved malware protection through separation of executable and non-executable files
  • Simplified rights management for IT administrators
  • Compliance with current best practices for enterprise software

This security optimization reduces potential attack surfaces and ensures more reliable operation in business-critical IT environments.

Solutions for AutoCAD / CADinside
Solutions for Revit

Offline Help as Standalone Installation Package – Flexible installation for maximum efficiency


LINEAR Solutions V26.0

Starting with version 26.0, the offline help is available as an optional standalone installation package. You can now choose whether to install the comprehensive documentation locally or access the always up-to-date online help. This flexibility significantly shortens installation times and optimizes disk space usage on your systems.​

Benefits at a glance

  • Significantly shorter installation time thanks to optional offline help
  • Reduced storage space requirements when local help files are omitted

This modular approach provides maximum flexibility in configuring your work environment and ensures leaner, faster installations tailored to your individual needs.

Solutions for AutoCAD / CADinside
Solutions for Revit
Customer request

Automated Shading Calculation Based on the Revit Model


LINEAR Solutions V25.2

The new shading analysis feature enables you to evaluate self and external shading of buildings directly based on your Revit model – precise, automated, and fully integrated into your energy planning.

  • Automatic solar position calculation: Based on location, date, and time, all relevant sun positions are determined automatically.
  • Analysis of self and external shading: Shading from the building itself and surrounding structures is derived directly from the model, with all relevant geometries taken into account.
  • Visual result display: Shading degrees for individual windows are displayed as curves – enabling quick plausibility checks and targeted optimization.
  • Direct integration into cooling load calculation: The calculated shading data is incorporated into the dynamic cooling load calculation. Solar gains through transparent components are accurately considered – for energy-efficient system design.

Explore more details...

Solutions for Revit

Create Your Own Label Families – with the New Label Configurator


LINEAR Solutions V25.2

The new Label Configurator lets you create individual label families quickly, intuitively, and precisely tailored to your project requirements – directly within Revit. This enables standardized, project- and discipline-specific labeling directly in the model. It saves time, ensures consistency, and supports clear, standards-compliant documentation.

  • Automatic category preselection: When you select an object to label before starting, the configurator automatically identifies the corresponding Revit category – ensuring a seamless configuration process.
  • Targeted filtering by disciplines and parameters: Narrow down the selection to relevant LINEAR label parameters using smart filter options – for better clarity and faster selection.
  • Intuitive configuration via drag & drop: Easily add desired parameters to your label family via double-click or drag & drop.
  • Choose your preferred design: Customize visual properties like font, font size, text color, alignment, or column width.
  • Real-time preview for full control: The integrated preview shows exactly how your label will look in the model. Changes to layout or parameter order can be checked and adjusted instantly.
  • Efficient handling of multiple labels: Use the “Create more” option to keep the configurator open after saving – perfect for creating multiple variants. The label families can be reused and shared across projects.

Explore more details...

Solutions for Revit
