Outputting the Concept and Design of Domestic Ventilation
Shows step-by-step how to print out all the information on the ventilation concept and the design of the domestic ventilation.
Before you begin
You want to create a printout that contains the air volume plans, an overview of the ducts and the throttle settings of the diffusers.
Requirements:
-
You have assigned a ventilation concept to the ventilation zones.
-
You have laid out the rooms in the ventilation zones.
Navigate to
Procedure
- Click Print

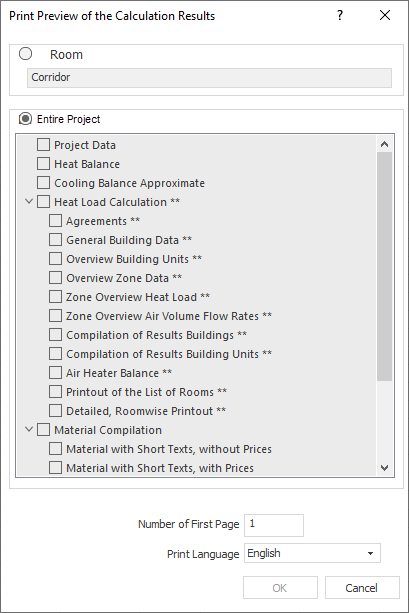

in the toolbar. The dialog Compilations and Results opens.
- If necessary, select the Entire Project.
- Select the Project Data checkbox to also output general project data.
- Select the checkboxes Ventilation Concept DIN 1946-6 and Domestic Ventilation - Design and click OK. A dialog opens with a preview of the documents to be output.
- Check the preview and click on Print. The dialog Print opens.
- If necessary, add further print themes to the output.
- Click OK. The printer selection dialog opens.
- Select the desired printer, define any additional settings for the printout and click OK. The printout is started.
